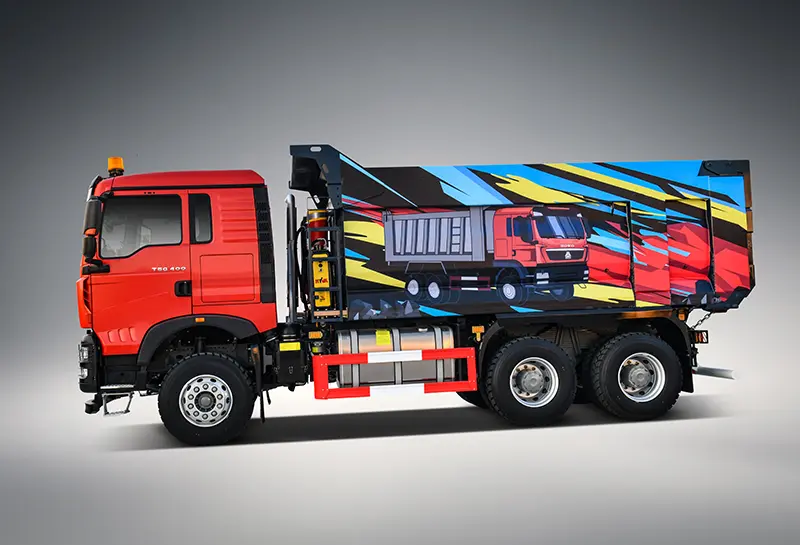

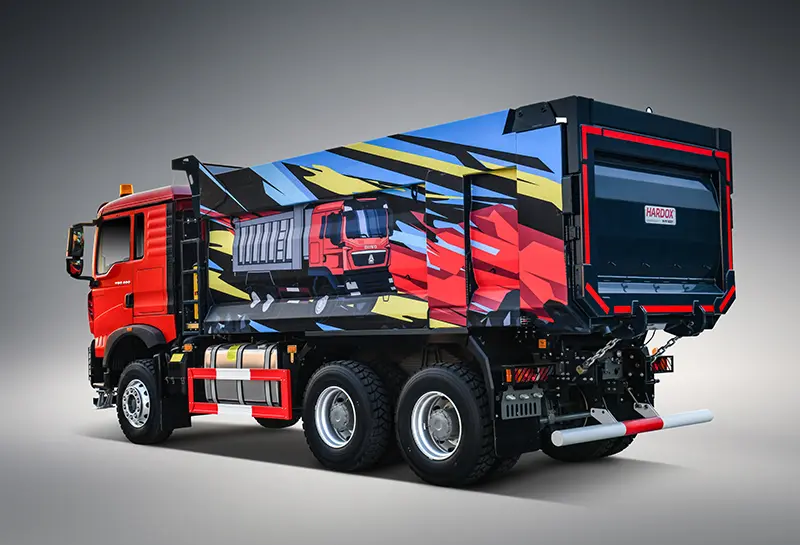

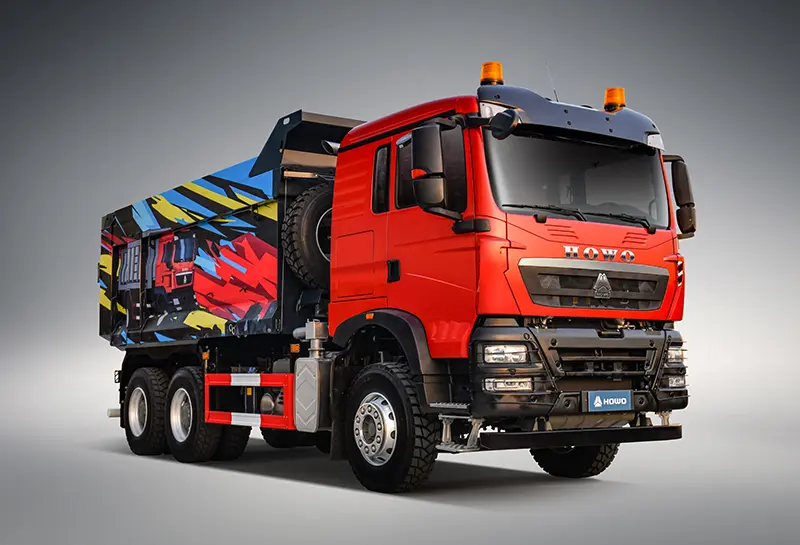

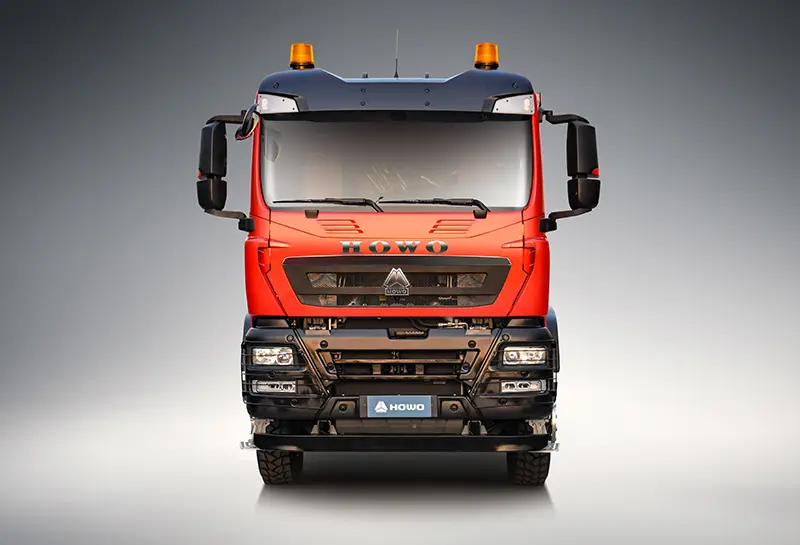

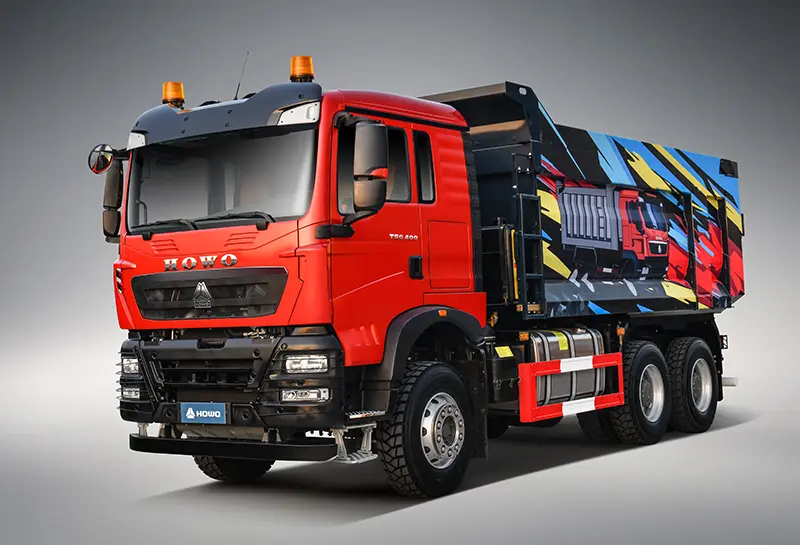

HOWO TX 6 WHEELER DUMP TRUCK |
|
|
Model |
ZZ3257N4647A |
|
Driving Form |
6X4 |
|
Cabin |
HW TX cabin ,1 sleeper with AC |
|
Engine |
Make: SINOTRUK |
|
Transmission |
HW19710, 10F & 2R, with PTO |
|
Steering |
ZF power steering, modol ZF8118, hydraulic steering with power assitance |
|
Front Axle |
HF9,1×9000 KGS Steering with doubleT-cross section beam |
|
Rear Axle |
HC16, 2×16000 KGS |
|
Chassis |
Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members |
|
Brake |
Service brake: dual circuit compressed air brake |
|
Electrics |
Operating voltage: 24 V, negative grounded |
|
Tyres |
12.00R20, radial tyres with one spare tyre |
|
Fuel Tank |
300L |
|
Cargo Body |
5600x2300x1500mm,Floor 8mm, Side 6 mm 20CBM ,Loading 40 tons |
|
Overall Dimension |
8500*2550*3450mm |
