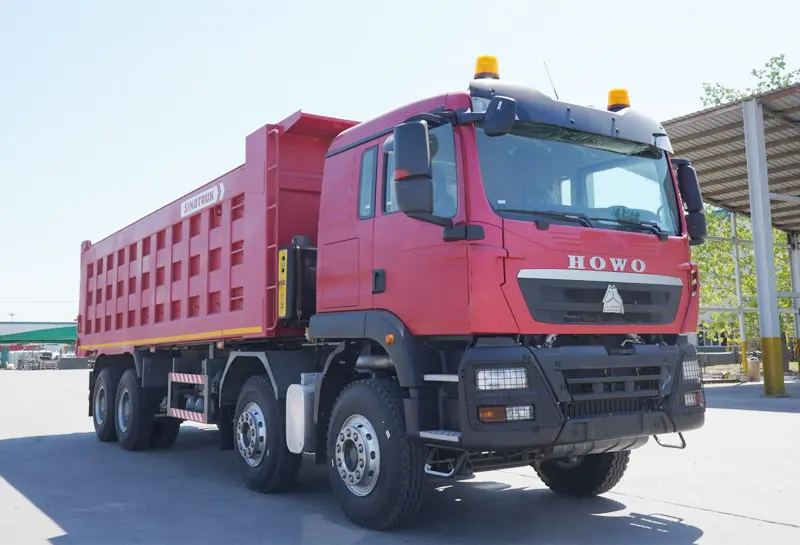

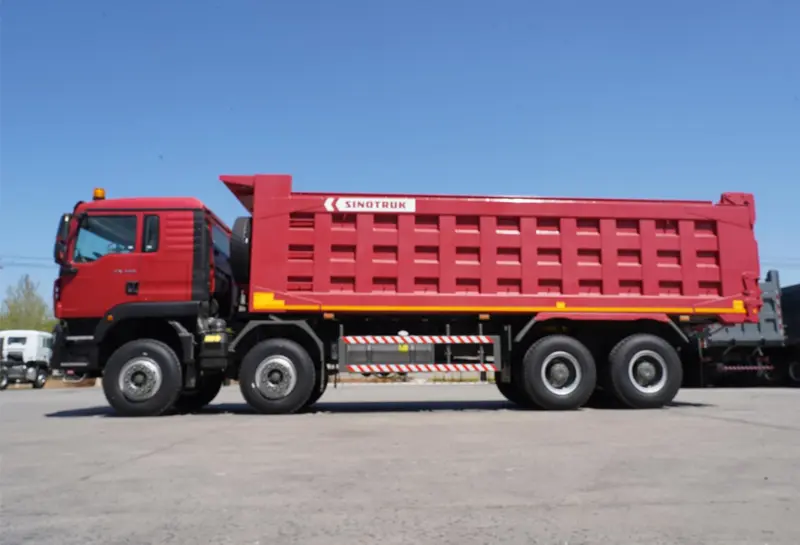

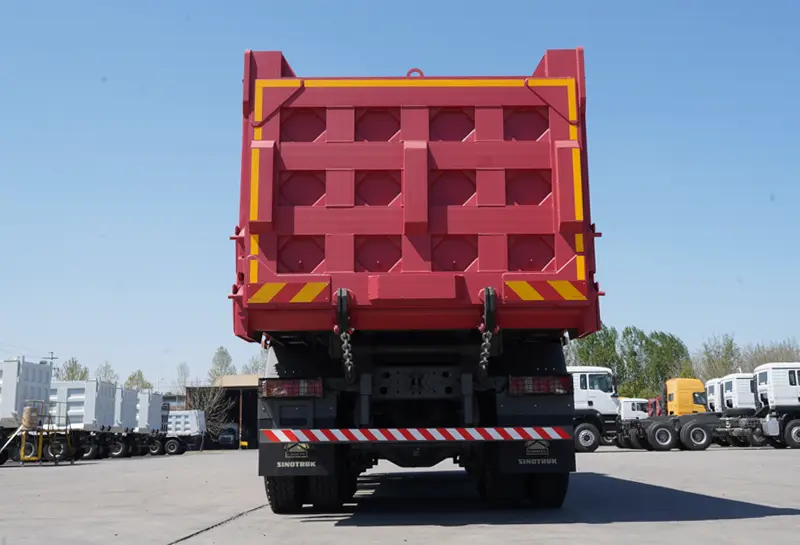

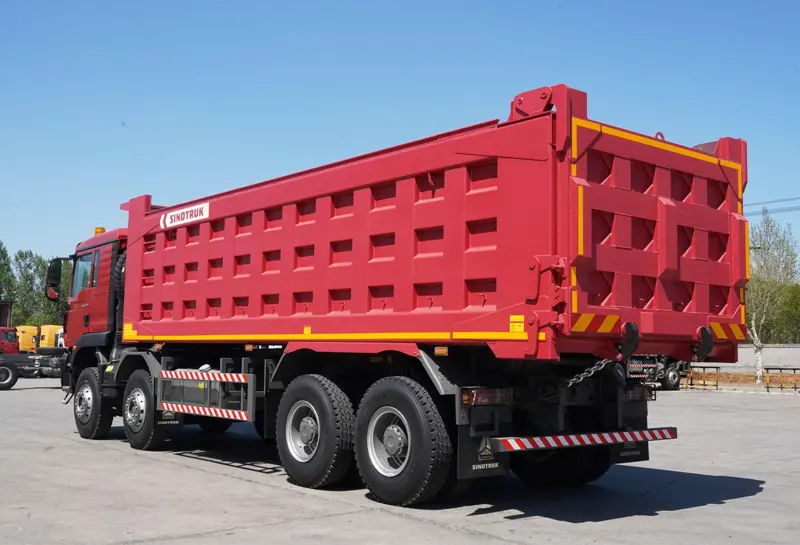

| HOWO TX 8×4 TIPPER TRUCK | ||
| Model | ZZ3257V3647B1R | |
| Engine | Make: WEICHAI POWER | |
| Diesel: 4 stroke diesel engine | ||
| Engine model: WP12.400E201, Euro II emission standard | ||
| 6 cylinder in-line with 4 valves, water cooling, turbo-charging & intercooling | ||
| Maximum output: 400hp (294Kw) at 1900 rpm | ||
| Maximum torque: 1800Nm at 1000~1400 rpm | ||
| Displacement: 11.596L. | ||
| Bore: 126mm; Stroke: 155mm | ||
| Compression ratio: 17:1. | ||
| Clutch | Single- plate dry diaphragm spring clutch, diameter 430mm, hydraulically operating with air assistance | |
| Transmission | Transmission, model HW19710, 10 forward and 2 reverse, with PTO. | |
| Ratio:14.284 10.623 7.871 5.876 4.375 3.265 2.428 1.799 1.343 1.00 13.913/3.18(R) | ||
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange | |
| Front Axle | Model: VGD95, drum brake, 9.5T, MAN technology | |
| Rear Axles | Model:MCP16, drum brake, 16T x2, double reduction with differential locks between wheels and axles, MAN technology | |
| Chassis | Frame: Double layer with section of 300×80×8 mm | |
| Front suspension: 10 semi-elliptic leaf springs | ||
| Rear suspension: 12 semi-elliptic leaf springs | ||
| Fuel tank: with 300 L fuel tank with locking fuel cap | ||
| Steering | BOSCH8098, hydraulic steering with power assistance | |
| Ratio:22.2-26.2:1 | ||
| Brakes | Service brake: dual circuit compressed air brake. | |
| Parking Brake (emergency brake): spring energy, compressed air operating on rear wheels | ||
| Auxiliary brake: engine exhaust brake | ||
| Without ABS | ||
| Wheel & Tires | Tire: 12.00R20 tube | |
| Rims: 8.5-20 | ||
| Driver’s cab | HW76 Long cab, with one sleeper and two seats, 2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, adjustable driver’s seat, heating & ventilation system, sun visor, adjustable steering wheel, air horn, safety belt, AC, Higher metal bumper | |
| Electrics | Operating voltage:24V, negative grounded; Starter: 24V, 5.4KW | |
| Alternator: 3-phrase, 28V, 1540W; Batteries: 2×12, 180Ah | ||
| Cigar-lighter, horn, headlamp, fog light, brake lights, indicators, and reverse lamp | ||
| Dimensions in mm | Wheelbase | 3625+1350 |
| Front wheel track | 2033 | |
| Rear wheel track | 1858 | |
| Front overhang | 1500 | |
| Rear overhang | 900 | |
| Approach angle(o) | 25 | |
| Departure angle(o) | 53 | |
| Body size | 5400×2300×1500 (mm) bottom 8mm, side 6mm, | |
| middle lifting system | ||
| Weight in kg | Permissible loading capacity on chassis | 11500 |
| Curb weight | 14500 | |
| Gross vehicle weight (with trailer) | 26000 | |
| Front axle loading capacity. | 9500 | |
| Rear axle loading capacity | 16000×2 | |
