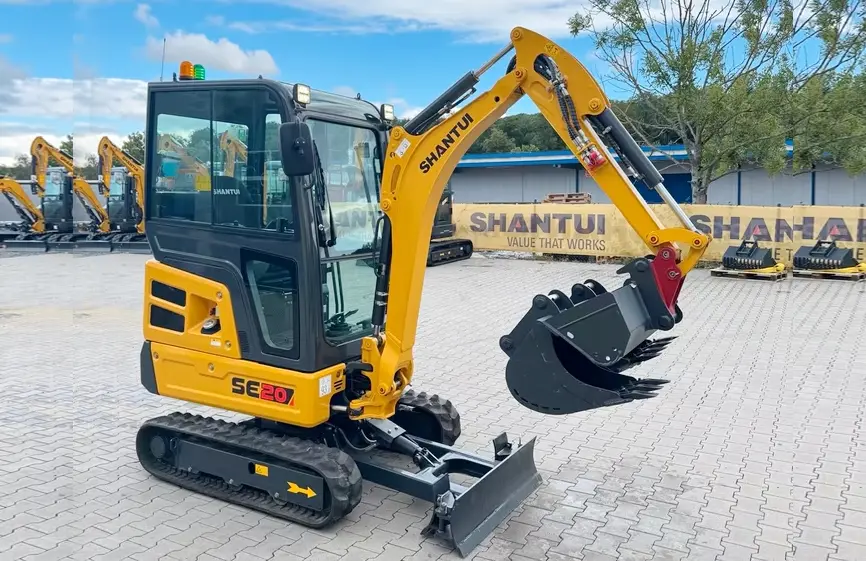

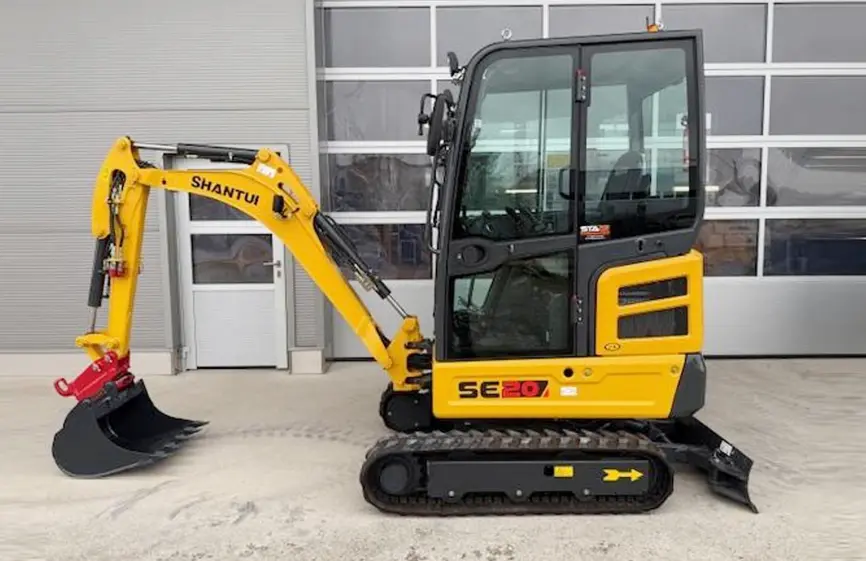

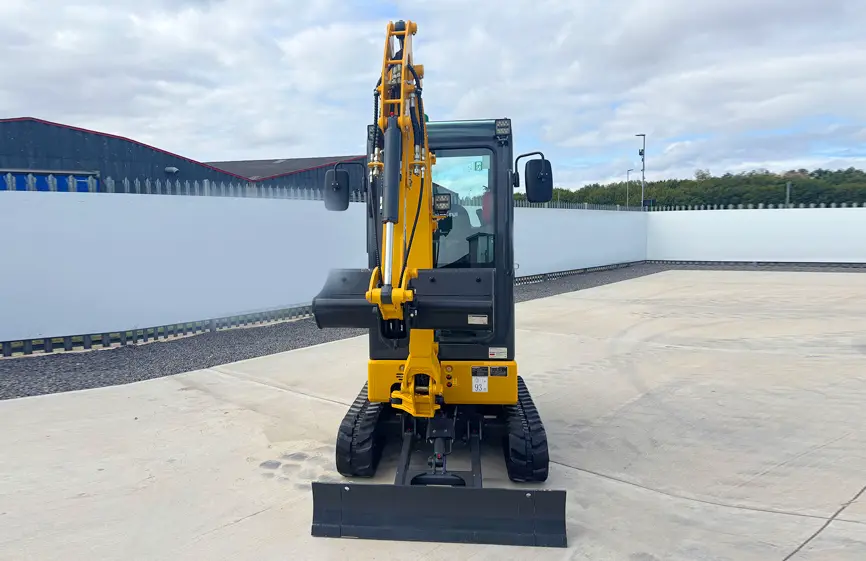

Shantui Mini Excavator SE20-10 is equipped with an internationally renowned brand engine that meets Euro V, Tier 4, and China IV emission standards. It offers powerful and reliable performance, capable of meeting different power requirements of users. The load – sensing control hydraulic system features high system pressure, smooth compound operations, and high overall operating efficiency.
The Shantui Mini Excavator SE20-10 cab space has been enlarged for a broader field of vision, better meeting the usage needs of users with larger builds in regions like Europe and America. It comes with a 4.3 – inch intelligent LCD screen that directly displays the working status and alarm messages, making the machine’s condition clear at a glance. It is equipped with internationally well – known pilot control handles for precise operation.
The Shantui SE20-10 combines innovation, durability, and user-centric design to enhanceoperational efficiency. lts compact footprint and advanced hydraulic system make it a standoutchoice for professionals seeking reliability without compromising on performance. Whether forcommercial or private use, this mini excavator simplifies complex tasks with ease and precision.
Shantui Mini Excavator SE20-10 can be equipped with four sets of attachment pipelines and supports double – lock hydraulic quick couplers (complying with Australian regulations), mechanical quick couplers, and side – tilt quick couplers. It is compatible with attachments such as hydraulic rammers, breakers, extended booms, and thumb grabs. With standard boom offset and undercarriage swing functions, it can flexibly handle various working conditions.
| Parameter | SE20-10 |
|---|---|
| Operating weight(kg) | 2000 |
| Engine power(kW/rpm) | 11.8/2300 |
| Bucket capacity(m³) | 0.04 |
| External dimensions(mm) | 3845×990/1300×2400 |
| Bucket rod digging force(kN) | 9.5 |
| Bucket digging force(kN) | 16 |
| Rotating speed(r/min) | 0~10 |
| Travel speed(km/h) | 2.4/4.2 |
| Maximum digging height(mm) | 3535 |
| Maximum digging distance(mm) | 3925 |
| Maximum digging depth(mm) | 2270 |
| Emissions (Indicated as per international standards) | Euro Ⅴ |
