Sinotruk Howo TX 4×2 Cargo Truck

Sinotruk Howo TX 4×2 Cargo Truck

Vehicle type
Howo TX
Model
ZZ5187CCYK501GF1
Engine
SINOTRUK MC07.27-60
Horsepower
270HP
Transmission
SINOTRUK HW11710ACL
Max Speed
89KM/h
Product Introduction
Product Introduction

New Benchmark for Trunk Transportation: Sinotruck Howo TX 270 4×2 Cargo Truck
The Sinotruck Howo TX 270 4×2 Cargo Truck, specially designed for efficient logistics, is equipped with a 270 hp National VI emission engine with a peak torque of 1,050N-m, which, together with the small speed ratio rear axle, achieves excellent fuel consumption of only 22L per 100km at high speeds.

With the small speed ratio rear axle, Sinotruck Howo TX 270 4×2 Cargo Truck realizes the excellent performance of fuel consumption of only 22L in 100km under high speed working condition. The combination of 4×2 drive and 9-ton front axle/16-ton rear axle keeps the weight of the truck at 6.8 tons and the compliant load up to 15 tons.

SINOTRUCK HOWO TX 4×2 CARGO TRUCK

Power Chain Matching: Sinotruck Howo TX 270 4×2 Cargo Truck adopts the golden combination of HW19710CL transmission + MCY08BGS drive axle, which improves the transmission efficiency by 5%.

Scene Adaptability: Optimized for express transportation. Platform height (1.1m) + maximum 40m³ cargo volume, support for dumping transportation.

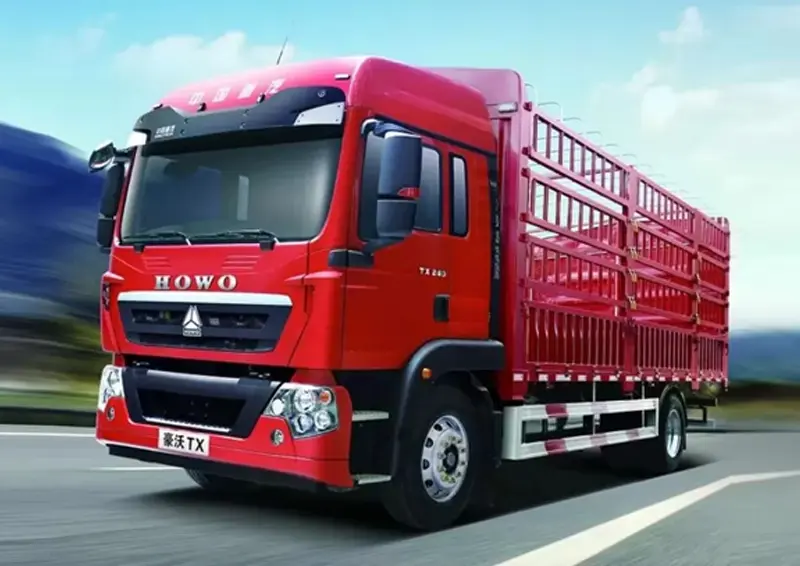

sinotruck howo TX 4×2 cargo truck-2
Product Parameters
SINOTRUCK HOWO TX 4×2 CARGO TRUCK
Engine Model MC07.29-61
Dimensions (mm) 12000×2550×3980
Wheelbase (mm) 7100
Front overhang and rear overhang (mm) 1430/3470
Factory-determined maximum total mass (Kg) 18000
Rated number of passengers (persons) 2,3
Engine model MC07.29-61
Net power (kw)/speed (r/min) 210/2200
Maximum torque (Nm)/speed (r/min) 1200/120-1800
Gearbox HW11710ACL (hand-held gear) gearbox
Clutch (mm) φ430
Rear axle model MCJ09BGY Self-adjusting arm single rear axle (drum)
Rear axle ratio 3.91
Fuel tank (L) 600
Frame section (mm) (6+4)250
Suspension (front spring, rear spring) Standard front and rear multi-leaf springs (7/7+3)
tire 295/80R22.5 tire (longitudinal pattern/18PR)
Product Applications

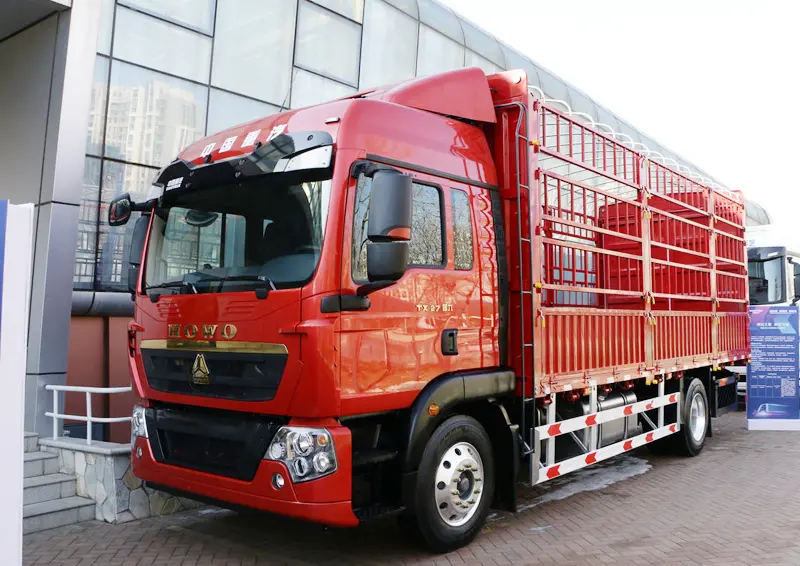

sinotruck howo TX 4×2 cargo truck-2
SINOTRUCK HOWO TX 4×2 CARGO TRUCK

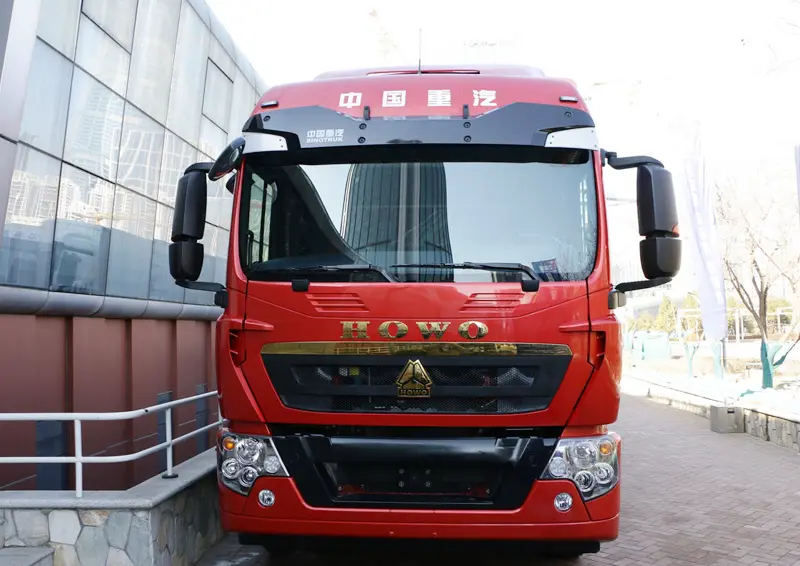

sinotruck howo 4×2 TX cargo truck-2
SINOTRUCK HOWO TX 4×2 CARGO TRUCK

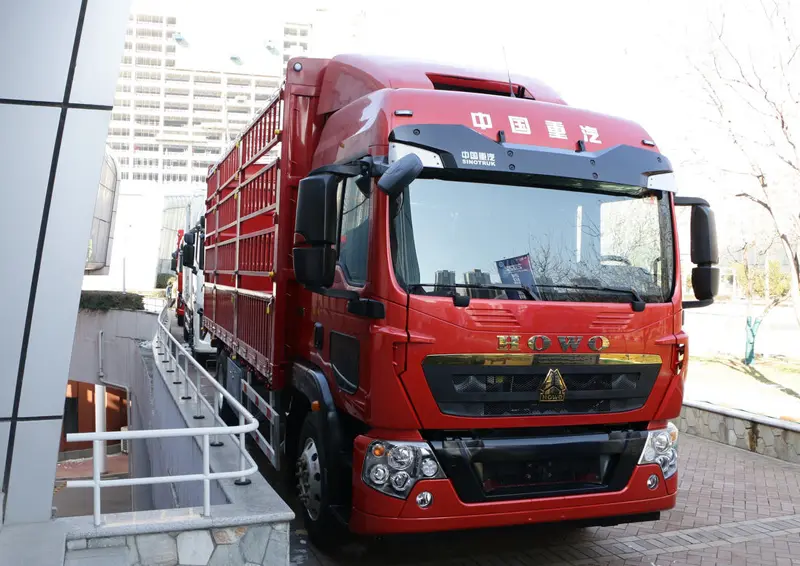

sinotruck howo TX 4×2 cargo truck-4
SINOTRUCK HOWO TX 4×2 CARGO TRUCK
