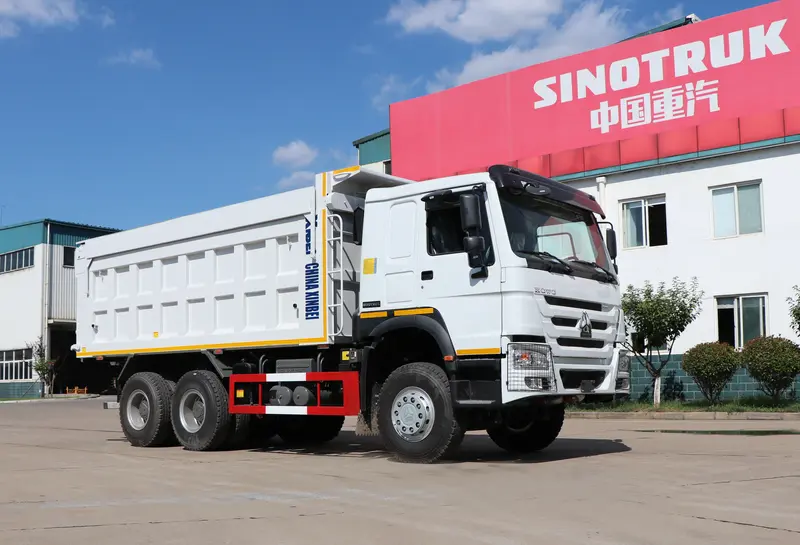

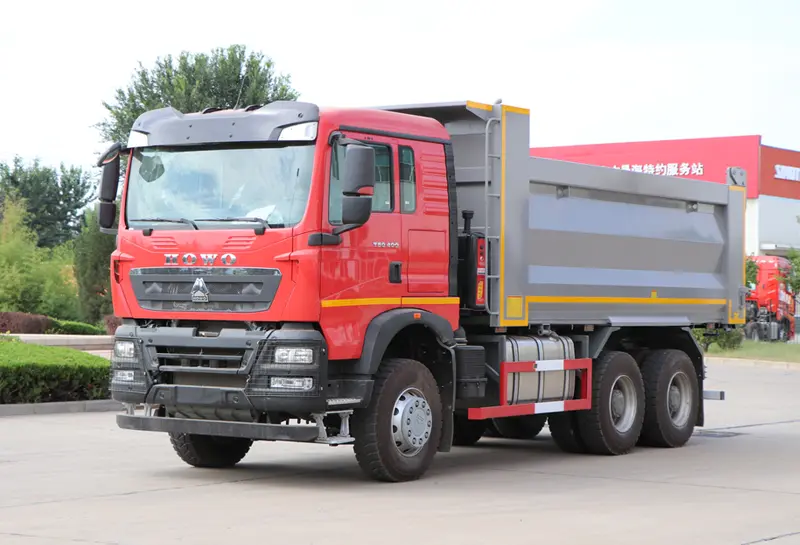

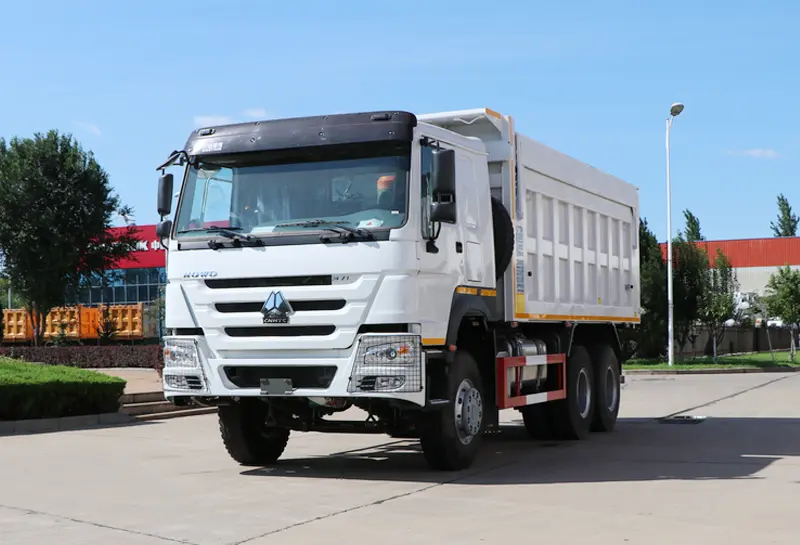

Sinotruk Howo 6x4 Dump Truck

Sinotruk Howo 6x4 Dump Truck

Vehicle type
Dump Trucks
Model
ZZ3317V326GF1
Engine (Ps)
Euro III,WD615.96C
Dimension
5800 x 2300 x 1500mm
Drive type
6x4
Transmission
HW19710
Product Introduction
Product Introduction

Sinotruk howo 6×4 dump truck is a mature model of SINOTRUK with the reliable and stable structure design, high bearing capacity, excellent engine force and highly stable performance, with its fame forged in construction and mining industries with adverse operating environments, available for the short-range earthwork transportation tasks for mines and construction projects.

  1. Chassis: The truck is built on a sturdy 6×4 chassis, providing excellent stability and load-carrying capacity. The six-wheel configuration enhances traction and maneuverability, making it suitable for off-road and challenging terrains.

  2. Engine: The Sinotruk Howo is equipped with a high-performance diesel engine that delivers impressive power and torque. This engine is designed to meet strict emission standards, ensuring compliance with environmental regulations.

  3. Dump Body: The dump body is constructed from high-quality steel, offering strength and durability. The body design allows for easy loading and unloading of materials, while the hydraulic lifting mechanism ensures smooth operation and efficient dumping.

  4. Suspension System: The truck features a well-engineered suspension system that provides a comfortable ride and reduces stress on the vehicle’s components. This contributes to improved fuel efficiency and extended service life.

  5. Safety Features: The Sinotruk Howo is equipped with a range of safety features, including ABS brakes, airbags, and a backup alarm. These systems help prevent accidents and protect both the driver and other road users.

  6. Comfort: The cab of the truck is designed with the driver’s comfort in mind, featuring adjustable seats, climate control, and a comprehensive dashboard display. These amenities enhance productivity and reduce driver fatigue during long working hours.

  7. Technology: The Sinotruk Howo incorporates advanced technology, such as electronic monitoring systems and GPS navigation, which facilitate efficient fleet management and improve overall operational efficiency.

SINOTRUK HOWO 6X4 DUMP TRUCK

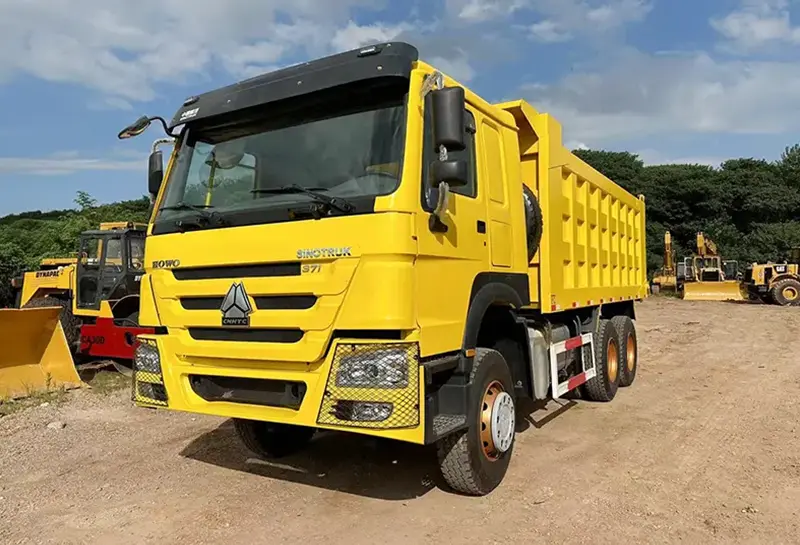

The Sinotruk Howo 6×4 dump truck is a heavy-duty vehicle designed for efficient transportation and loading of various materials. This truck features a robust chassis, powerful engine, and advanced technology to ensure optimal performance and durability in demanding work environments.

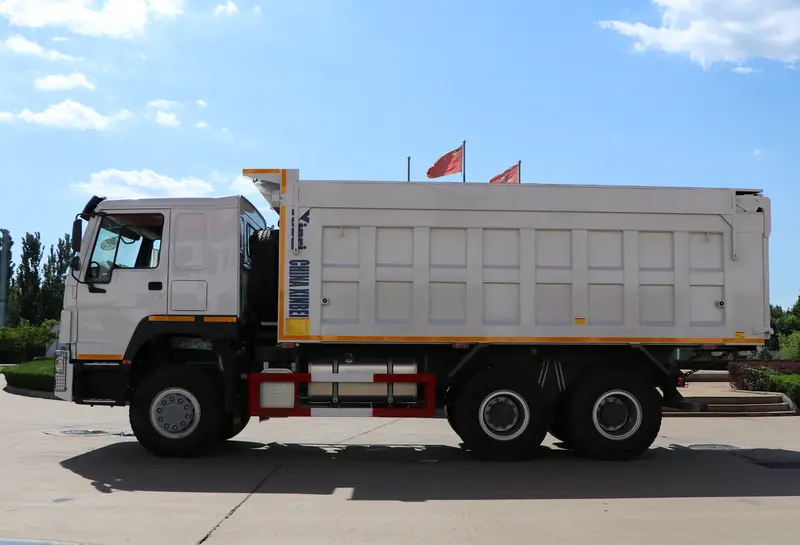

sinotruk howo 6×4 dump truck-1
Product Parameters
SINOTRUK HOWO 6X4 DUMP TRUCK
Engine Make: SINOTRUK
Disel:4-Stroke direct injection diesel engine
Engine model: Euro III,WD615.96C
6-cylinder in-line with water cooling, turbo-charging and intercooling
Maximum output: 380hp at 2000 rpm according to DIN
Maximum torque: 1590Nm at 1200-1500 rpm
Displacement:9.726L
Bore:126mm
Stroke:130mm
Compression ratio:17.5:1
Specific fuel consumption:195g/kWh
Engine oil filling quantity:23L
Cooling system filling quantity(long-term filling):40L
Thermostat with 71℃ opening begin
Twin cylinder air compressor
Clutch Single-plate dry coil-spring clutch, diameter 430mm,hydraulically
operating with air assistance.
Transmission HW19710, 10 forward, 2 reverse, manual.
Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.8, 1.34, 1. R13.91, R3.18.
Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle Steering with double T-cross section beam
Rear Axles Pressed axle housing, central single reduction with planetary wheel reduction
 and with differential lock
Chassis Frame: U-profile parallel ladder frame with section of 300×80×8mm and
reinforced subframe, all cold riveted cross members
Aluminum fuel tank: 300 L capacity with locking fuel cap, fitted to the off side of the chassis
Steering ZF power steering, model ZF8098,hydraulic steering with power assistance.
Ratio: 22.2-26.2 (
howo truck parts catalog pdf)
Braking System Service brake: dual circuit compressed air brake
Parking brake(emergency brake):spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake
ABS
Tyres 11.00/22.5,11pics, radial tyres.
Cab HW76 Cab, one berth, right hand drive, air condition, all steel forward control,
 55°hydraulically tiltable to the front, 2-arm windscreen wiper system with three speeds,
laminated windscreen with casted-in radio aerial, hydraulically damped adjustable
driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system,
exterior sun visor, adjustable roof flap, stereo radio/cassette recorder, safety belts,
adjustable steering wheel, air horn, with 4-point support fully floating suspension + shock
absorbers
Electrical System Operating voltage:24V,negative grounded
Starter:24V.7.5Kw
Alternator:3-phase,28V,1500W
Batteries:2*12V,165Ah/180Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights,
indicators and reverse light, backing alarm
Instrument Active check central controller with indicators, with this integral instrument the daily manual checks
on the vehicle and combined indicators of compressed air pressure, coolant temperature, engine oil
pressure and battery charging.
Dimensions in mm Wheel base                                                        3825+1350
Front wheel track                                                2022
Rear wheel track                                                 1830
Front overhang                                                    1540
Rear overhang                                                    1870
Approach angle(°)                                               20
Departure angel(°)                                               24
Overall length                                                      8665
Overall width                                                       2496
Overall height                                                      3947
Cargo box Dimension                                                          5800 x 2300 x 1500mm
Lifting type                                                          central lifting
Ram                                                                   Φ220*980
Weight in kg Dead weight                                                        12300
Front axle loading capacity                                 7000
Rear axle loading capacity                                 18000 (double axle)
Performance Maximum driving speed(km/h)                           80
Fuel consumption(L/100km)                              30-33
Product Applications

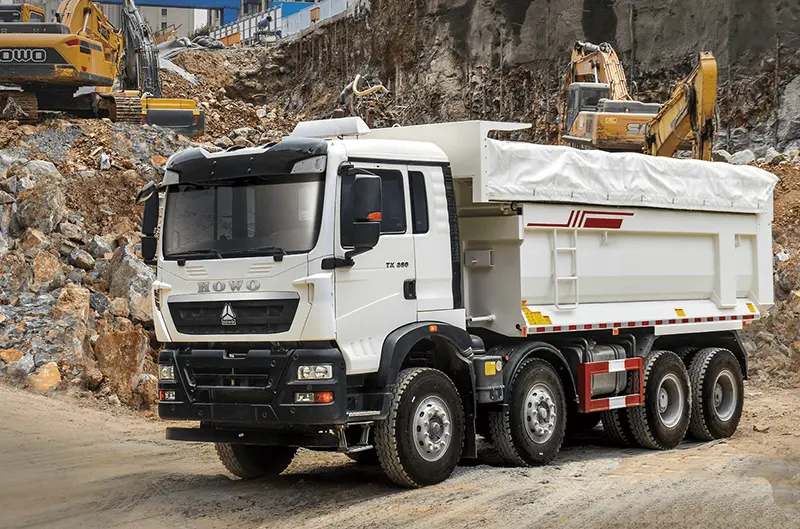

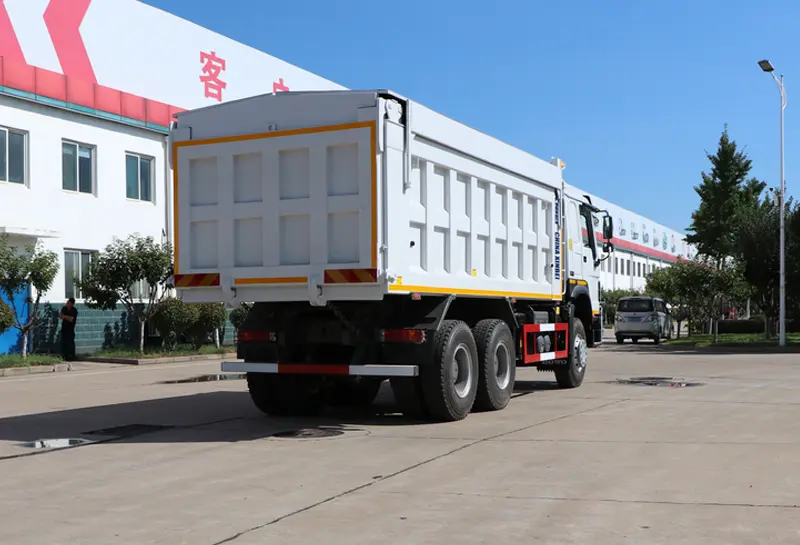

sinotruk howo dump truck -9
SINOTRUK HOWO 6X4 DUMP TRUCK

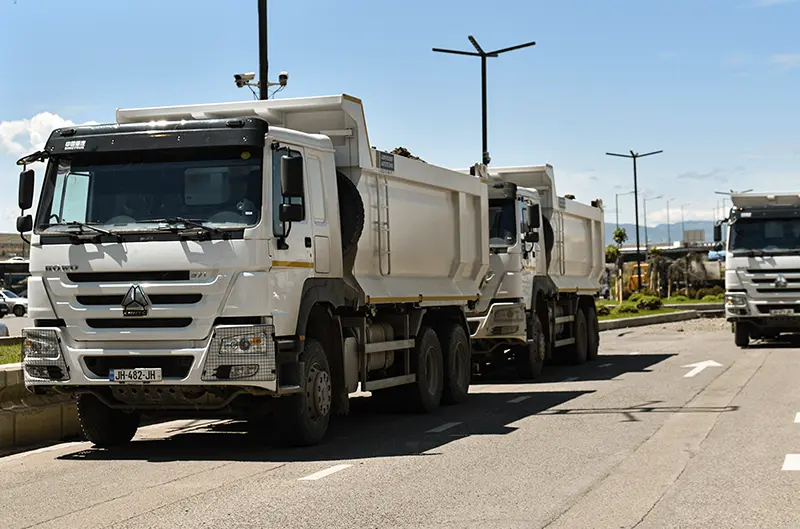

sinotruk howo dump truck -7
SINOTRUK HOWO 6X4 DUMP TRUCK

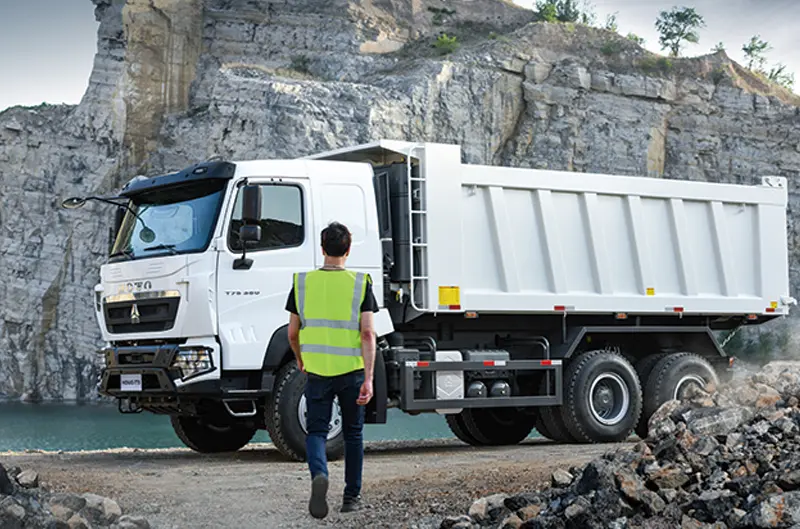

sinotruk howo dump truck -4
