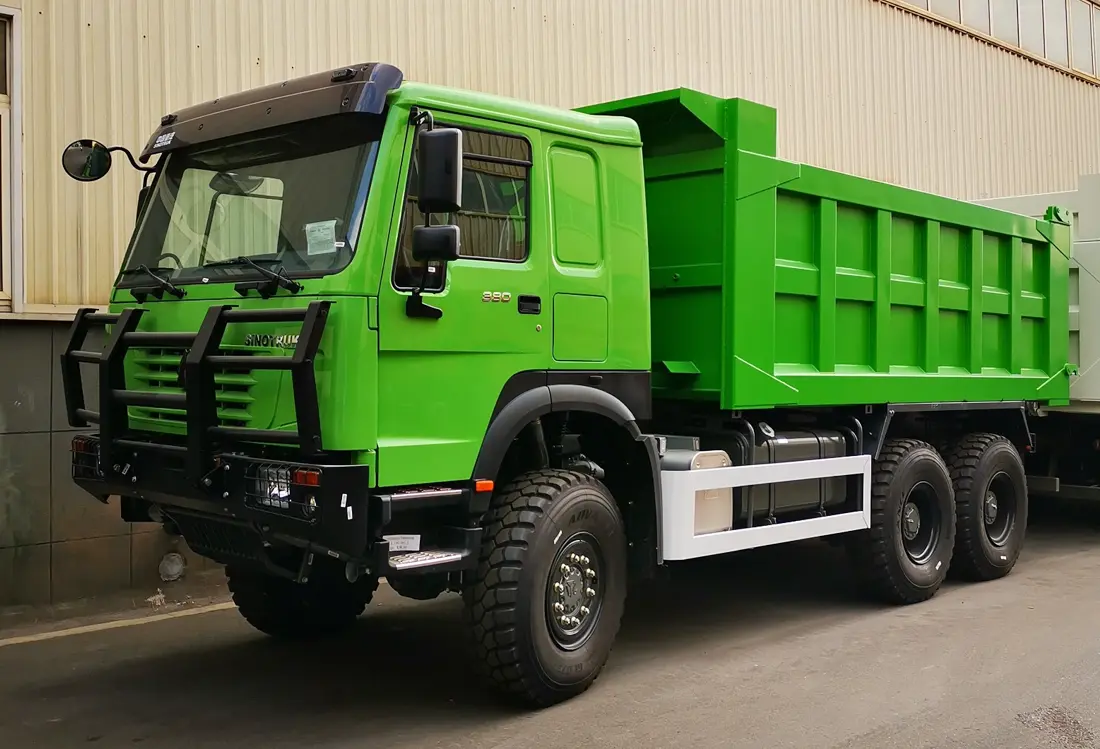

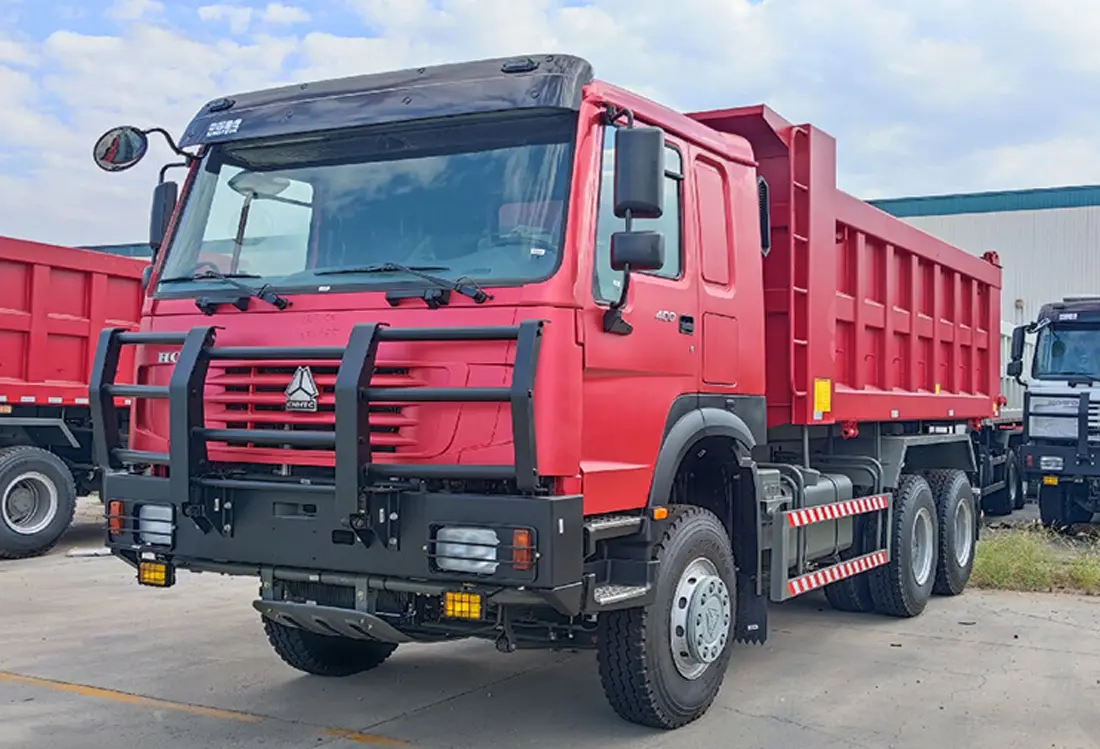

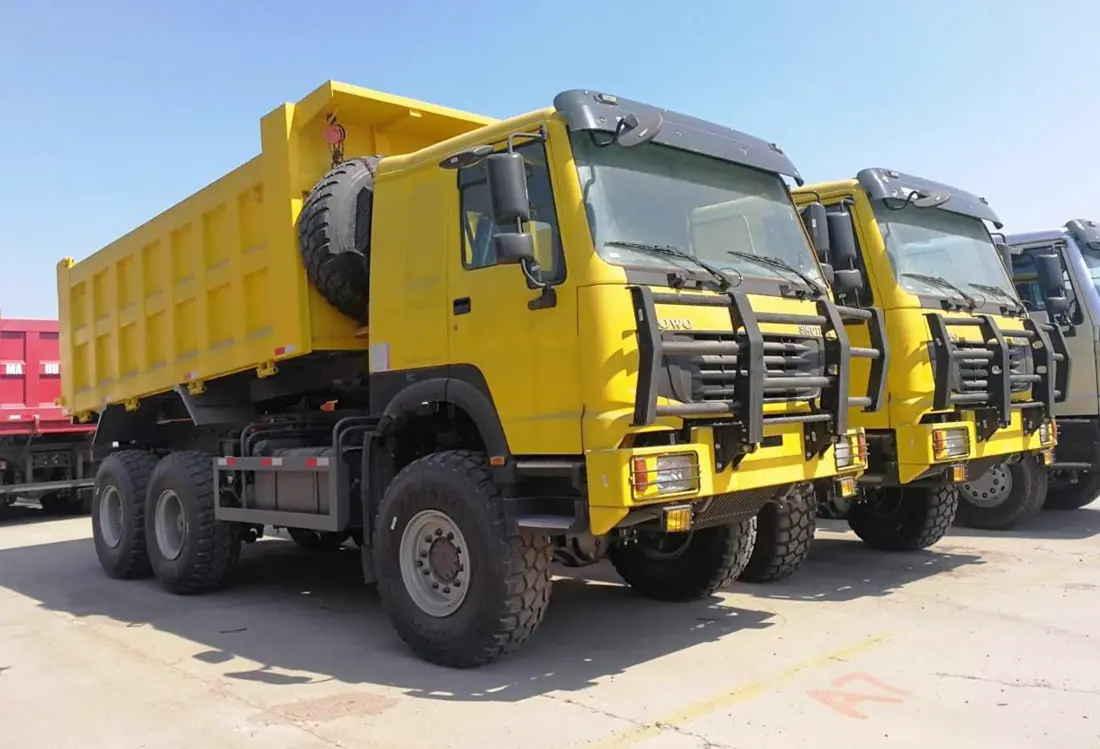

Sinotruk Howo 6x6 Dump Truck

Sinotruk Howo 6x6 Dump Truck

Vehicle type
Dump Trucks
Dimension(mm)
8545x2496x3386
Engine
WD615.47
Curb weight(kg)
12290
Model
ZZ3257N3647A
Drive type
6x6
Product Introduction
Product Introduction
  1. Six-Wheel Drive: The 6×6 configuration provides superior traction and stability on challenging terrains, making it suitable for off-road operations.
  2. Powerful Engine: Equipped with a high-performance engine, the truck offers excellent power and torque, ensuring smooth performance even under heavy loads.
  3. Large Capacity Body: The dump body is designed to handle large volumes of materials, allowing for efficient loading and unloading.
  4. Advanced Suspension System: The truck features an advanced suspension system that ensures a comfortable ride and reduces stress on the vehicle’s components.
  5. Safety Features: The Sinotruk Howo 6×6 dump truck comes with a range of safety features, including air brakes, ABS, and a backup alarm, ensuring the protection of both the driver and other road users.
  6. Customizable Options: The truck can be customized to meet specific requirements, with options such as different types of engines, transmissions, and body styles available.

Applications: The Sinotruk Howo 6×6 dump truck is widely used in various industries, including:

  • Mining: The truck is perfect for transporting materials such as coal, ore, and overburden in harsh mining environments.
  • Construction: It is ideal for moving earth, debris, and construction materials on construction sites.
  • Logistics: The truck can be used for efficient transportation of goods and materials within distribution networks.
SINOTRUK HOWO 6X6 DUMP TRUCK

The Sinotruk Howo 6×6 dump truck is a heavy-duty vehicle designed for efficient transportation and loading of various materials. With its robust construction and advanced features, this truck is ideal for industries such as mining, construction, and logistics.

howo 6×4 dump truck
Product Parameters

SINOTRUK HOWO 6X6 DUMP TRUCK

Truck Model

Left Hand Drive or Right Hand Drive model

Truck Brand

Sinotruk Howo 6×6 dump truck

Dimension(Lx W xH)

8545x2496x3386

Cargo body size (L*W*H, mm)

5800x2300x1400

Cargo body thickness(mm)

bottom:8mm, side:6mm, or customized as you required

Lift type of Carriage

Ventral lifting or front tipping

Approaching angle/Departure angle(°)

19/26

Overhang(front/rear) (mm)

1500/1739

Wheel base (mm)

3625+1350

Max speed(km/h)

75

Curb weight(kg)

12290

Loading Weight(kg)

25000

Fuel Tanker

300L with locking fuel cap

Fuel consumption(L/100km)

32

Clutch

Single-plate dry clutch Φ430mm

Engine

Model

WD615.47,4- stroke direct injection diesel

engine, 6 cylinders in line with water cooling ,

Horse Power,

371HP

Emission Standard

EURO II

Transmission

Model

HW 19710,10 forwards and 2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on

rear wheels

Auxiliary brake

Engine exhaust brake

Steering system

Model

ZF8098/ZF8118 hydraulic steering with power assistance

Front axle

HF9

Rear axle

HC16

Tire

12.00R20, 12.00-20

Electrical system

Operating voltage

24V,negative grounded

Starter

24V,7.35KW

Alternator

28V,1500W

Batteries

2*12V.165Ah

Product Applications
sinotruk howo dump truck -3
SINOTRUK HOWO 6X6 DUMP TRUCK
sinotruk howo dump truck -4
SINOTRUK HOWO 6X6 DUMP TRUCK
sinotruk howo dump truck -8
SINOTRUK HOWO 6X6 DUMP TRUCK
