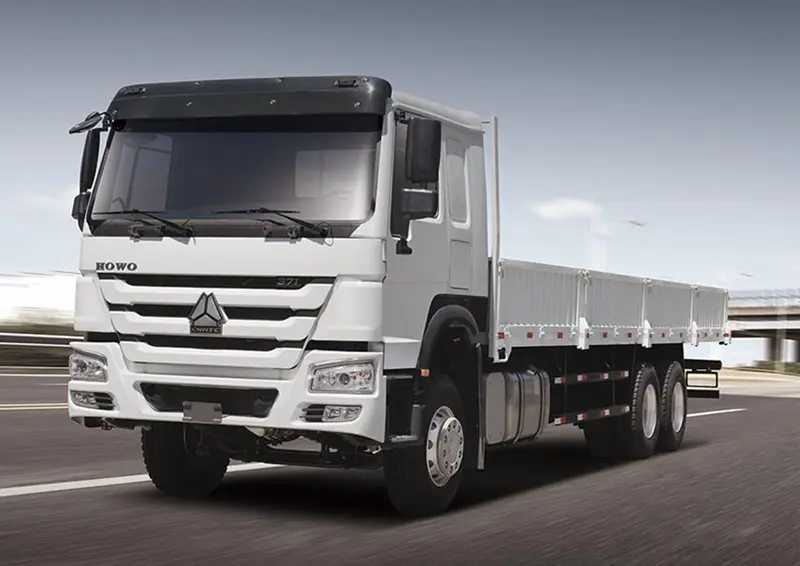

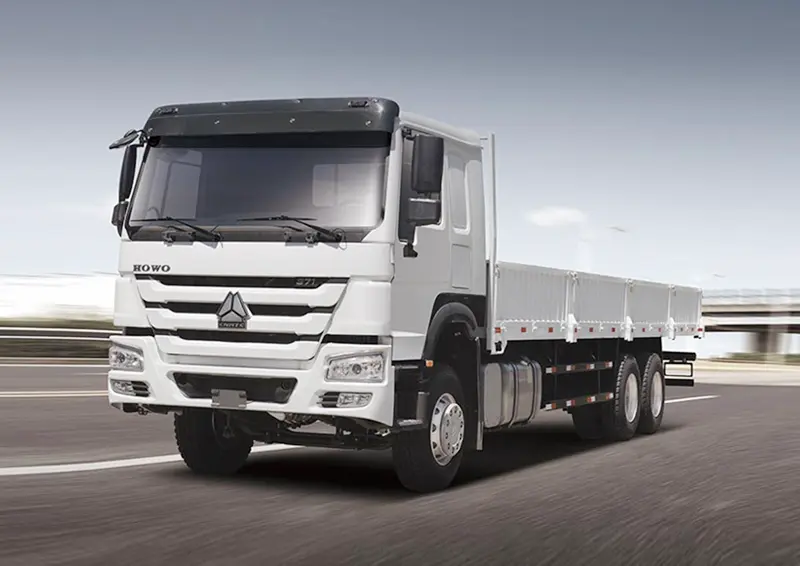

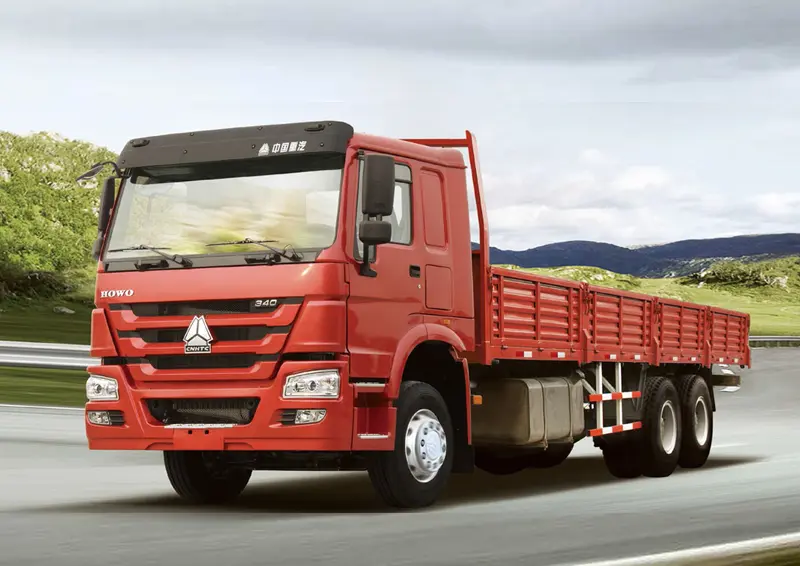

SINOTRUK HOWO 7 6×4 CARGO TRUCK

Engine

Make:SINOTRUK

Engine   model: WD615.69, Euro II emission standard

4 stroke   direct injection diesel engine

6   cylinder in-line with water cooling, turbo-charging & intercooling

Maximum   output: 336hp(247Kw)at 2200 rpm according to DIN

Maximum   torque: 1350Nm at 1100~1600 rpm

Bore: 126mm;  Stroke: 130mm;

Displacement:   9.726L;  Compression ratio:17:1

Clutch

Single- plate dry diaphragm spring clutch, diameter 430mm,   hydraulically operating with air assistance

Transmission

Transmission,   model HW19710

Propeller   Shaft

Double   universal joint propeller shaft with gear-shaped coupling flange

Front   Axle

Steering   with double T-cross section

Rear   Axles

Pressed   axle housing, central single reduction with planetary wheel reduction (hub   reduction),  and differential locks   between wheels and axles

Ratio: 4.42                     Option:  4.22  4.80   3.7 4.11

Chassis

Frame:   U-profile parallel ladder type with section of 300×90×8 mm and reinforced subframe,, all cold   riveted cross members

Front   suspension: 10 semi-elliptic leaf springs with hydraulic telescopic   double-action shock absorbers and stabilizer

Rear   suspension: 12 semi-elliptic leaf springs with bogie spring and stabilizer

Spare   wheel carrier: with one spare wheel

Fuel   tank: with 400 L   fuel tank with locking fuel cap.

Steering

ZF8118,   hydraulic steering with power assistance

Ratio:   22.2~26.2:1

Brakes

Service   brake: dual circuit compressed air brake

Parking   Brake(emergency brake): spring energy, compressed air operating on rear   wheels

Auxiliary   brake: engine exhaust brake

Option: ABS

Wheel   & Types

Rims:   8.5-20,10 hole-steel

Types:   12.00R20 Tube

Option: 315/80R22.5   11.00R20

Driver’s   cab

Long cab

Electrics

Operating   voltage:24V, negative grounded;    Starter: 24V, 5.4KW

Alternator:   28V, 1540W;  Batteries: 2×12, 165Ah

Cigar-lighter, horn, headlamp, fog light, brake lights,   indicators and reverse lamp

Dimensions   in mm

Wheel   base

Front   wheel track

Rear   wheel track

Front   overhang

Rear   overhang

Approach   angle(^o)

Departure   angle(^o)

Overall   Dimension

Body size

4600+1350

2022

1830

1500

2900

16

12

10350×2496×3048(mm)   (3718 with air deflector)

7650×2326×800(mm)

Weight in   kg

Permissible   loading capacity on chassis

Dead   weight

Gross   vehicle weight

Front   axle loading capacity

Rear axle   loading capacity

20420

11450

32000

6500

13000×2

Performance

Maximum   driving speed(km/h)

Maximum   gradeability (%)

Minimum   ground clearance(mm)

Minimum   turning circle(m)

Fuel   consumption(L/100km)

97

34

314

21

32
