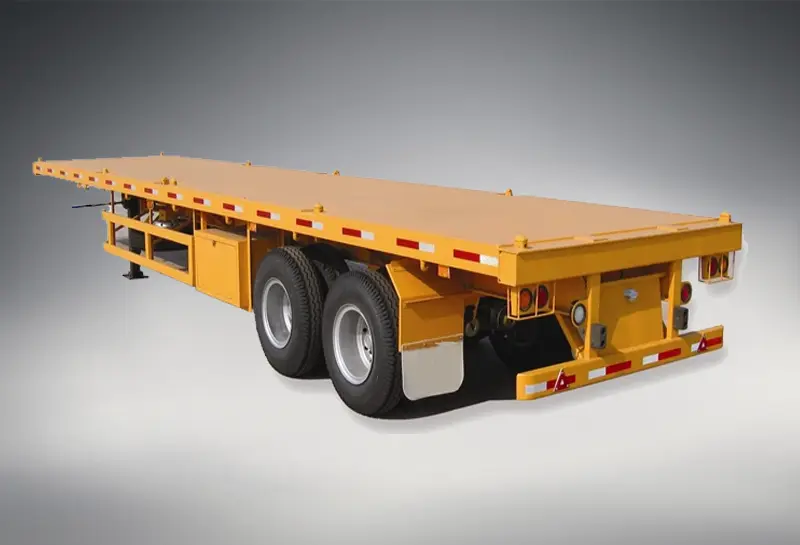

Sinotruk Howo Flatbed Semi Trailer

Sinotruk Howo Flatbed Semi Trailer

Vehicle type
Semi Trailers
Overall dimension
12500*2500*1500mm
Payload
60 tons
Axles
13T/16T/20T
Tyre and quantity
12R22.5 , 12 units
Axle brand and number
13 ton , FUWA brand ,3 units
Product Introduction
Product Introduction

Strong and durable frame: The trailer is built with a sturdy steel frame that can withstand heavy loads and rough road conditions. The frame is designed to provide optimal weight distribution, ensuring a smooth and safe ride.

Large loading capacity: The Howo flatbed semi-trailer has a spacious deck area, allowing it to carry large and heavy cargo items. The deck is made of high-quality steel, ensuring durability and resistance to wear and tear.

Adjustable deck height: The trailer features adjustable deck height, which allows for easy loading and unloading of cargo. This feature also ensures that the trailer can be used with different types of trucks and trailers, providing greater flexibility in transportation.

Easy maintenance: The Sinotruk Howo Flatbed Semi Trailer is designed for easy maintenance, with accessible components and straightforward repair procedures. This helps reduce downtime and keep the trailer in top condition for longer periods.

Safety features: The trailer is equipped with various safety features, such as reflective strips, brake lights, and turn signals, to ensure the safety of the driver, passengers, and other road users.

Customizable options: The Howo flatbed semi-trailer is available in a range of sizes and configurations, allowing customers to choose the model that best suits their specific transportation requirements.

SINOTRUK HOWO FLATBED SEMI TRAILER

Sinotruk Howo Flatbed Semi Trailer is a high-quality and reliable flatbed semi-trailer designed for heavy-duty transportation. It is manufactured by Sinotruk, one of the leading truck and trailer manufacturers in China. The Howo flatbed semi-trailer is known for its robust construction, excellent performance, and versatile design, making it an ideal choice for various transportation needs.

Sinotruk Howo Flatbed Semi Trailer-9
Product Specification
SINOTRUK HOWO FLATBED SEMI TRAILER
Tare Weight: 7.2T
Payload: 60T
Main beam: 500mm height, top plate 14mm thickness*140mm width, bottom plate 16mm thickness*140mm width, middle plate 8mm thickness
Twist lock:  12 pcs
Side beam:  14# /16#/18#channel steel
Platform:  3mm thickness checkered plate
King pin:  2.0/3.5 inches (bolted or welded)
Axles:  13T, 3pcs
Suspensions:  Mechanical suspension American type(Mechanical Suspension German Type)
 Leaf springs:  10 layers 90mm*13mm, 6 units;(12 layers 100mm*12mm, 6 units)
Rims:  9.0-22.5, 12pcs
Tires:  315/80R22.5, 12pcs
Landing gear:  JOST 28T, Linkage Outrigger
 Tool box: 1 unit
Accessories:  1 unit tool box, 1 pc spare tire carrier, all set of standard tools.
Painting:  Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Brake system: WABCO 6 relays valve; T30/30+T30 air chambers, 40L air tanks
Spare tire carrier: 1pc
Color Optional, to be determined by customer
Product Applications
Sinotruk Howo Flatbed Semi Trailer-8
HOWO FLATBED SEMI TRAILER
Sinotruk Howo Flatbed Semi Trailer-9
HOWO FLATBED SEMI TRAILER
Sinotruk Howo Flatbed Semi Trailer
HOWO FLATBED SEMI TRAILER
