Sinotruk Howo Garbage Truck

Sinotruk Howo Garbage Truck

Vehicle type
Special Vehicles
Model
ZZ1257N4341W
Power
300hp
Engine
SINOTRUK
Body capacity
20 CBM
Drive type
4x2/6x4
Product Introduction
Product Introduction

The Sinotruk Howo  garbage truck is an efficient and environmentally friendly vehicle designed for municipal waste collection and transportation. With advanced technology and design concepts, this model has strong power and superior maneuverability, and is able to drive smoothly on a variety of urban roads and in complex environments.Sinotruk Howo 7 garbage trucks usually have a large capacity of dumpster, which is able to meet the needs of the city’s daily garbage disposal, reducing the frequency of emptying, and improving the efficiency of the work.

The Sinotruk Howo garbage truck is equipped with an efficient compression system that compresses the waste during loading, maximizing the amount of waste that can be loaded. In addition, the Sinotruk Howo 7 garbage truck’s body design is optimized for good sealing and durability, ensuring that there is no leakage during transportation and keeping the urban environment tidy.

Whether on city streets or in rural communities, the Sinotruk Howo 7 garbage truck is ideal for all types of waste disposal. Sinotruk Howo 7 garbage truck reliable performance and economical operating costs make it the first choice for many sanitation companies, helping to clean and beautify the urban environment.

SINOTRUK HOWO GARBAGE TRUCK

Safety and user-friendly design is one of the highlights of Sinotruk Howo 7 garbage truck, the vehicle is equipped with multiple safety protection systems to ensure the safety of operators. At the same time, the Sinotruk Howo 7 garbage truck’s easy-to-use operating system facilitates the driver’s waste collection and transportation operations.

Sinotruk Howo 7 Garbage Truck
Product Parameters
SINOTRUK HOWO GARBAGE TRUCK
General Vehicle Brand POWERSTAR
Chassis Brand SINOTRUK
Overall Dimension 10070 * 2500 * 3480 mm
GVW / Kerb Weight 25,000kg / 13,680kg
Cab Cab Capacity 3 persons allowed
Air Conditioner Heating/cooling air conditioner
Engine Fuel Type Diesel
Engine Brand SINOTRUK
Power 300 HP (221KW)
Displacement 9726 ml
Emission Standard Euro 2or 3
Chassis Drive Type 6X4, (left hand drive or Right hand drive)
Transmission 9 speed levers with 1 reverse
Wheelbase/No. of axle 4350+1300 mm / 3
Tire Specification 10.00-20
Tire Number 10 tires and 1 spare tire
Max Speed 95 km/h
Paint Metallic paint
Superstructure Body Capacity 20  CBM
Fill Hopper Capacity 2.3 m3
Sewager Tank volume 200 L
Body Material Weather resisting steel
Filling work cycle time 20~25 s
Filling lift time 6~9 s
Filling lift capacity 8 Tons
Discharge time 18~22 s
Max compression force 12 Tons
Discharge model Horizontal Ejection
Control

Electrically Hydraulic control

Manual Hydraulic control

Emergency Stop Button Hopper Both Sides
All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
Optional ** Backup alarm can be equipped.
** Camera can be equipped.
** Operation language can be English or Appointed language.
Product Applications

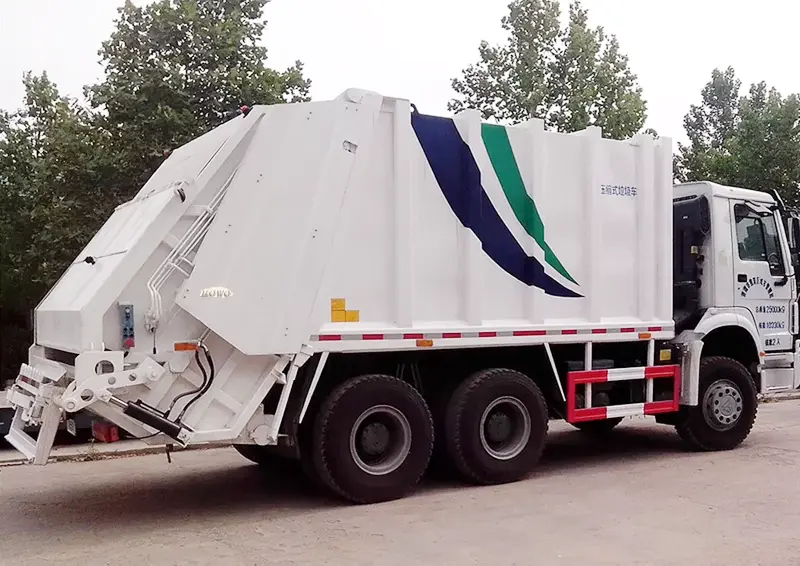

Sinotruk Howo 7 Garbage Truck-3
SINOTRUK HOWO GARBAGE TRUCK

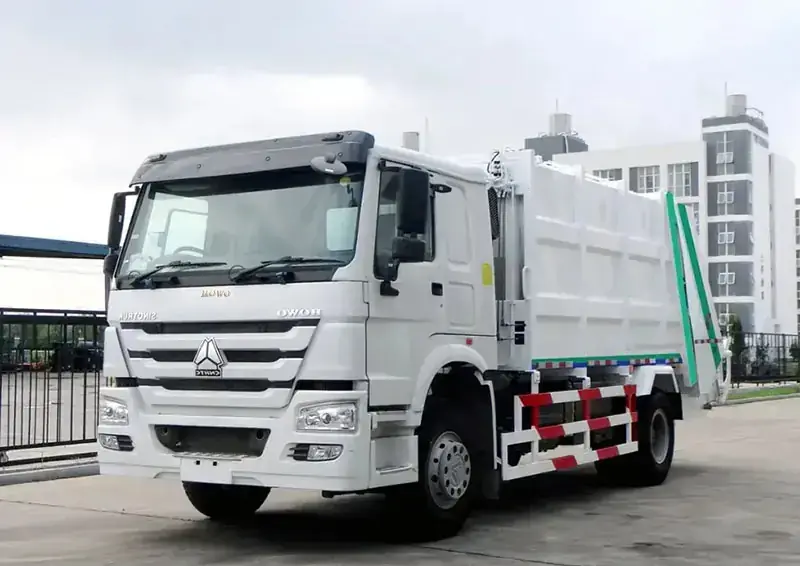

Sinotruk Howo 7 Garbage Truck-1
SINOTRUK HOWO GARBAGE TRUCK

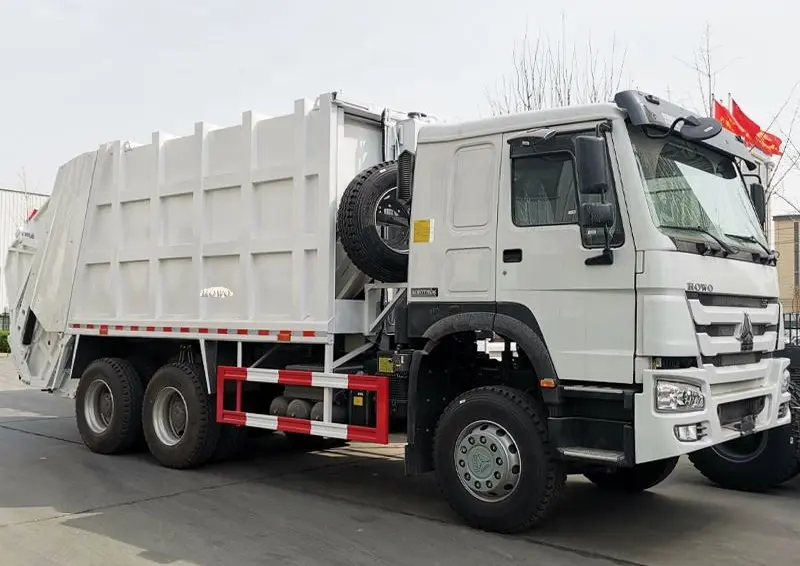

Sinotruk Howo 7 Garbage Truck-2
