| Category | Specification |
|---|---|

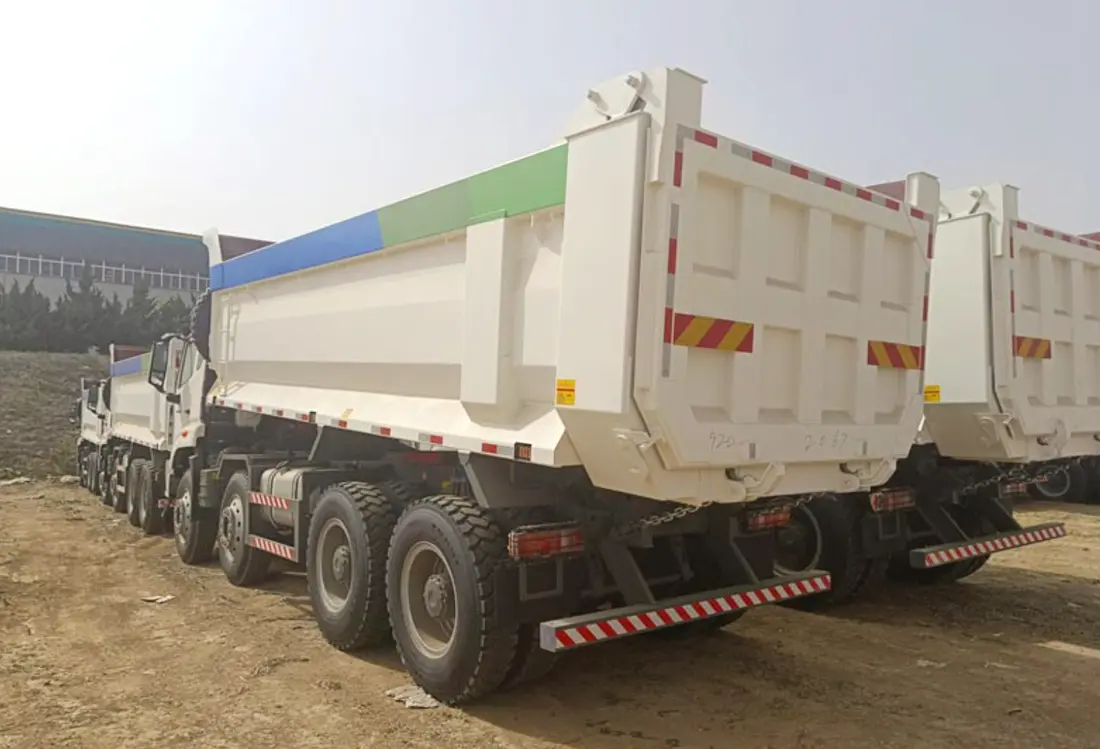

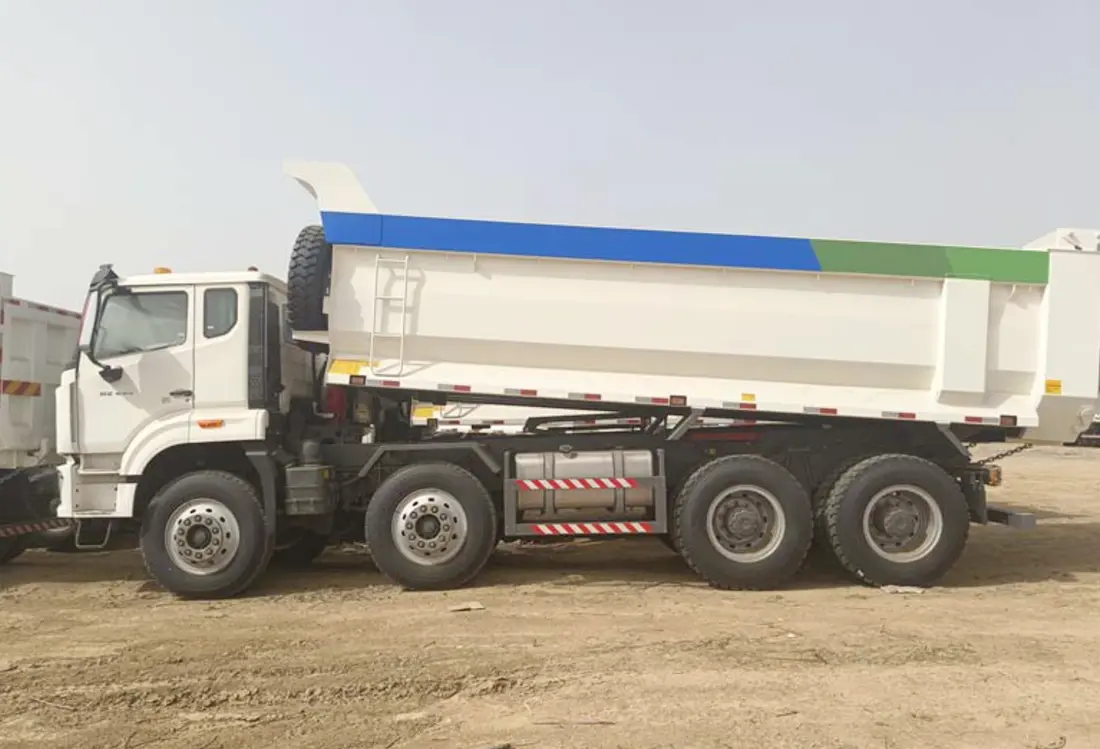

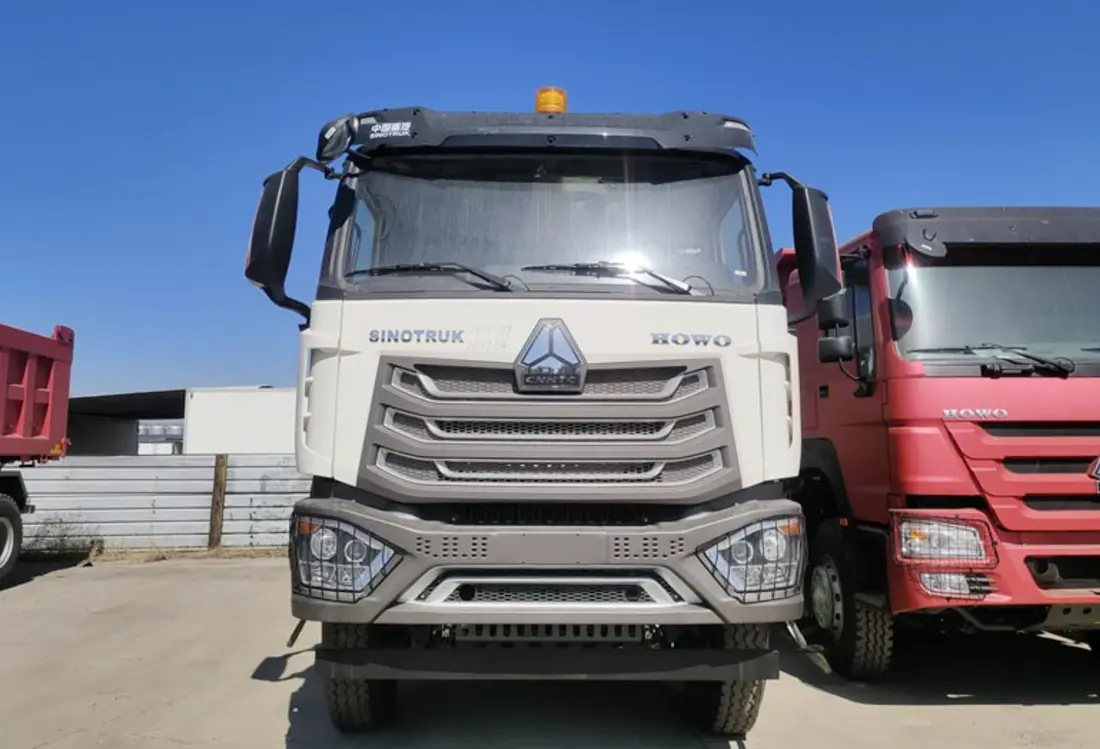

| Truck Name | Sinotruk Howo NX 430HP 8×4 Dump Truck U-shaped Bucket |
| Chassis | 8×4 Heavy-Duty Configuration (Double Rear Axles) |
| Engine | 430HP High-Torque Diesel Engine (WD615.47 Series) |
| Cargo Box | U-Shaped Design, 27–40 m³ Capacity (Dimensions: ~7800×2300×1500 mm) |
| Dumping System | Front-Lifting Hydraulic Tipper (Single-Acting Cylinder) |
| Transmission | ZF 12-Speed Manual Gearbox (Optional Automatic Available) |
| Axles | HANSA Axles (Front: HFA9, Rear: HC16) |
| Tires | 12.00R20 Radial Tires (12 Wheels, Including Spare) |
| Fuel Tank | 300–400 liters |
| Emissions | Euro 4-Compliant (Optional Euro 5) |
| Seating | 2-Person Cabin (Air Suspension Seat, Sleeper Option) |
| Weight | Gross Vehicle Weight (GVW): ~31–40 tons |
| Dimensions | Overall Length: ~10,300–11,400 mm, Width: ~2,496–2,550 mm, Height: ~3,400–3,450 mm |
| Additional Features | Four-Point Cabin Suspension, Wide-Angle Mirrors, Enhanced Safety Airbags |
