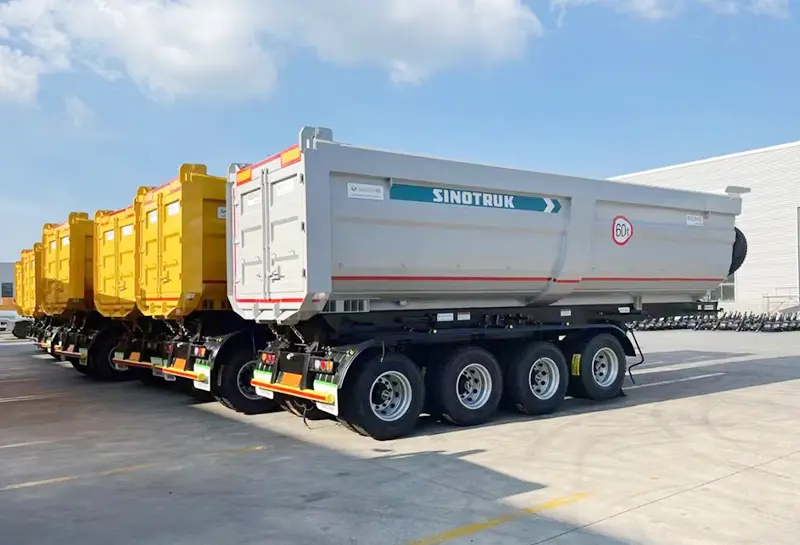

| SINOTRUK HOWO SEMI TRUCK DUMP TRAILER | ||
|
Loading Capacity |
30-50tons | 50-70T |
| Volume | 28-35cbm | 35-45cbm |
| Axle | 4 | 4*13/14tons,Fuwa BPW |
| Tyre | 16 | 16 pcs,12R22.5,11.00R20,12.00R20 |
| Dimensions(LxWxH) | 10000mm x 2500 x 3990mm | |
| Inner Dimension(LXWXH) | 9000x2350x1800mm | |
| Tare weight | 11tons | |
| Rims | 8.5-20, 9.0-20 | |
| Suspension System | Leaf spring suspension/air suspension | |
| Brake System | Dual line pneumatic brake system with WABCO emergency relay valve | |
| Main Beam | Height 500 Q345 carbon steel | |
| Cylinder system | Hyva Cylinder with PTO | |
| Kingpin | 2’ or 3.5’ interchangeable,JOST brand | |
| Landing Gear | 28 Tons , Two speed manual operation | |
| Electrical System | 1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard | |
| Lights and Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |
| Painting | Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available | |
| Tool Box | One tool box with a set of standard trailer tools | |
| Spare Tyre Carrier | One piece or two pieces | |
