Sinotruk Howo T5G Mixer Truck

Sinotruk Howo T5G Mixer Truck

Vehicle type
Special Vehicles
Model
ZZ5257GJBN324GE1
Dimension(m)
8.335×2.496×3.85
Maximum Speed
82km/h
Mixing dynamic volume
5.99m³
Engine
Sinotruck MC07.34-50
Product Introduction
Overview

Sinotruk howo T5G mixer trucks is an all new generation of high-end medium and heavy duty truck developed by CNHTC based on the core assembly technology from MAN. Sinotruk howo T5G mixer trucks for sale features outstanding fuel economy, light weight, superior power, and stable and reliable performance; meanwhile, Sinotruk howo T5G mixer trucks for sale offers multiple personalized configuration options, with an elegant, safe and comfortable cab. Sinotruk howo T5G mixer trucks for sale is suitable for long-distance standard load transport as well as medium- and short- distance transport by highway.

Sinotruk howo T5G mixer trucks ,Efficient power performance:

Equipped with advanced engine technology, it provides strong power output and is suitable for heavy-duty transportation.Optimized fuel economy reduces operating costs.

Sinotruk howo T5G mixer trucks ,Rugged and durable design:

Using high-strength steel, the frame structure is sturdy and adapts to complex working conditions.The mixing drum adopts wear-resistant material to extend the service life.

Sinotruk howo T5G mixer trucks for sale,Comfortable driving experience:

Equipped with luxury cab, spacious space and wide view.
The humanized design of the seat and console reduces the fatigue of driving for a long time.

SINOTRUK HOWO T5G MIXER TRUCKS

Sinotruk howo T5G mixer trucks for sale is an efficient vehicle suitable for engineering construction and concrete transportation thanks to its powerful power performance, intelligent configuration, and environmentally friendly and energy-saving features. Sinotruk howo T5G mixer trucks for sale rugged design and comfortable driving experience make it a trustworthy choice for users.

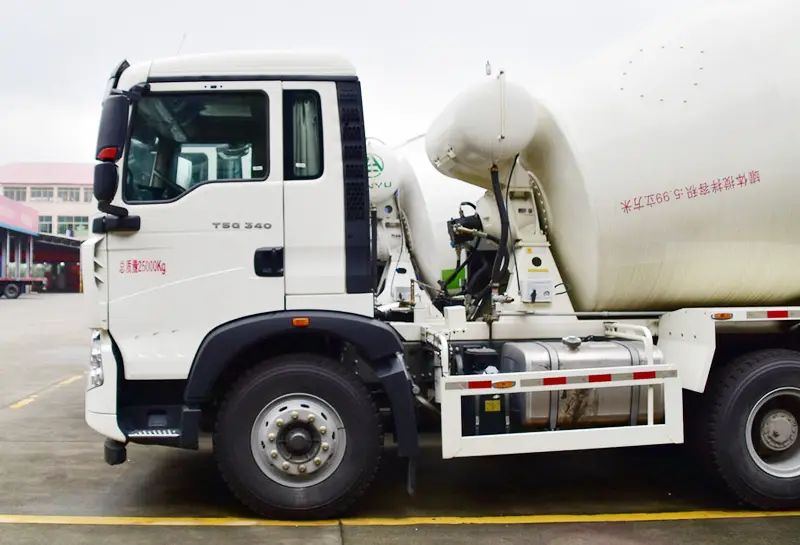

sinotruk howo T5G mixer trucks for sale-4
Parameters
SINOTRUK HOWO T5G MIXER TRUCKS
MODEL  ZZ5257GJBN324GE1
eight Parameter Curb Mass (kg) 13420
Full Loaded Mass (kg) 31000
Rated Towing Mass (kg)
Dimension Parameter External Size Length (mm) 9830
Width (mm) 2496
Height (mm) 3850
Wheel Base (mm) 1800+3050+1350
Min. Ground Clearance (mm) 260
Performance Parameter Max. Speed (km/h) 82
Economic Speed (km/h) 50~70
Max. Grade Ability (%) 35
Min. Turning Diameter (m) 20
Engine Model MC07.31-50,MC07.34-50
Net Power (kW)/Speed (r/min)
Max. Torque (Nm)/Speed (r/min) 1230/1200~1800,1250/1200~1800
Transmission HW13710L
Clutch(mm) φ430
Rear Axle Type ST16
Rear Axle Ratio 5.73
Fuel Tank (L) 300
Frame Section(mm) Front 965 rear 850×300×80×(8+5)
Tire 11.00R20
Product Applications

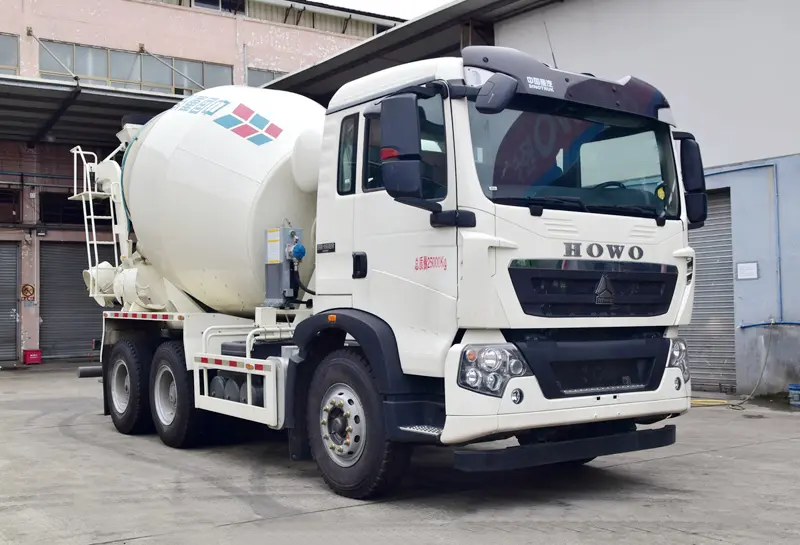

sinotruk howo T5G mixer trucks for sale-3
SINOTRUK HOWO T5G MIXER TRUCKS

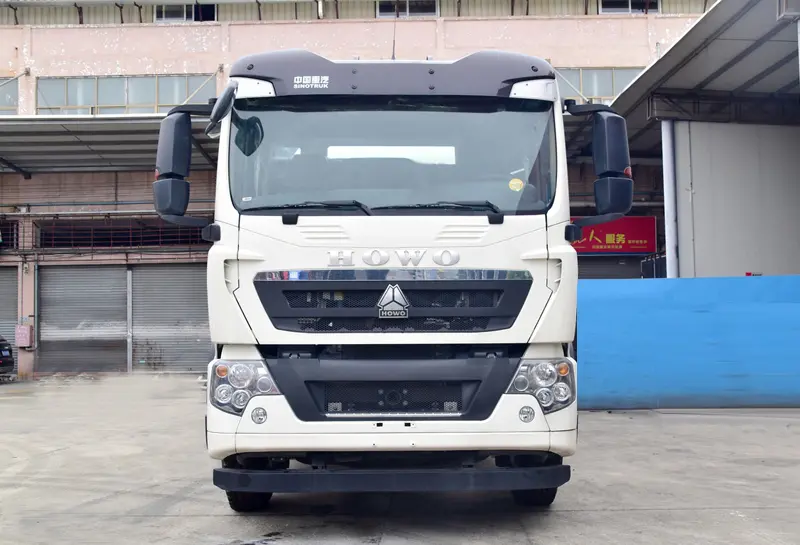

sinotruk howo T5G mixer trucks for sale-2
SINOTRUK HOWO T5G MIXER TRUCKS

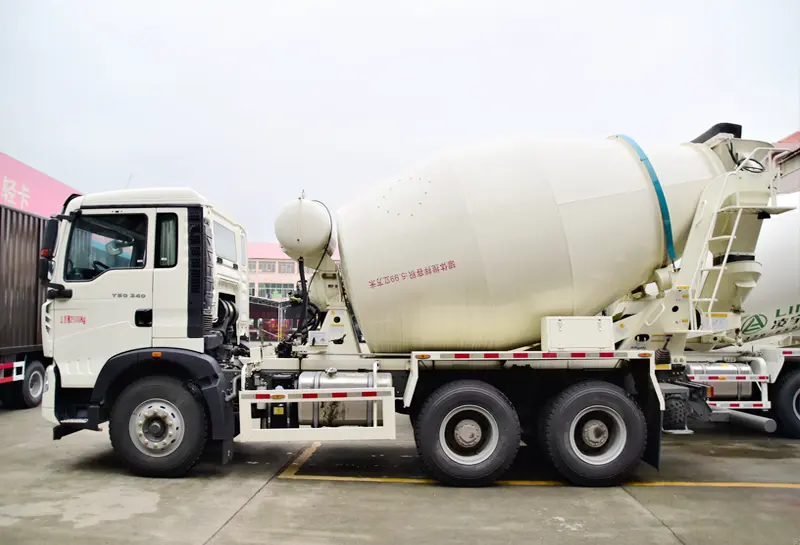

sinotruk howo T5G mixer trucks for sale-1
SINOTRUK HOWO T5G MIXER TRUCKS
