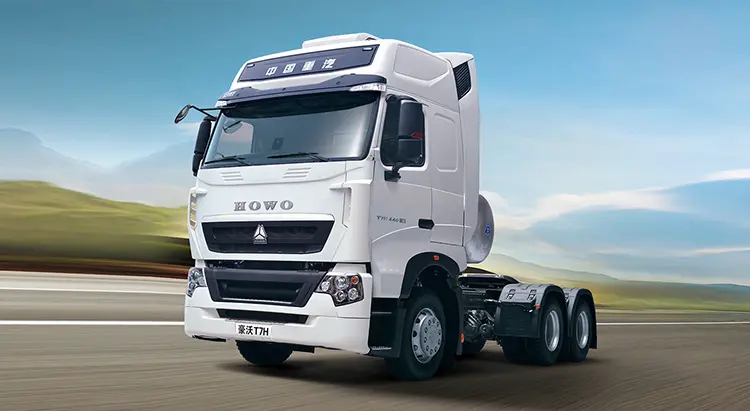

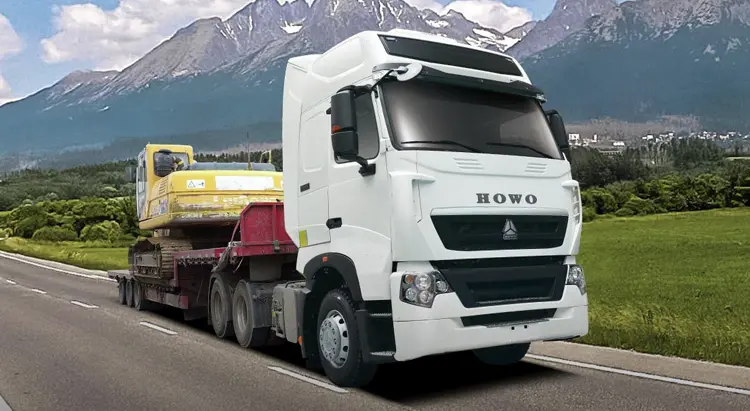

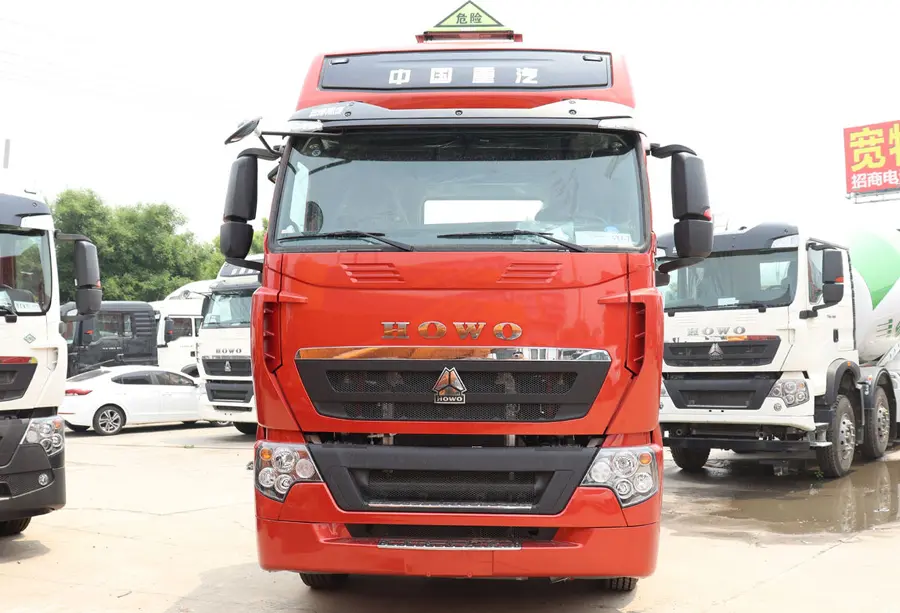

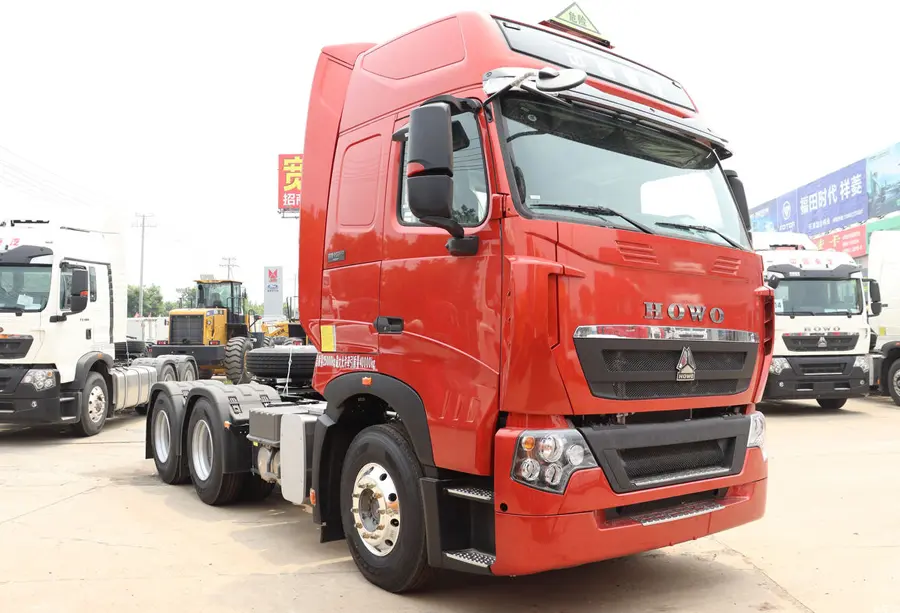

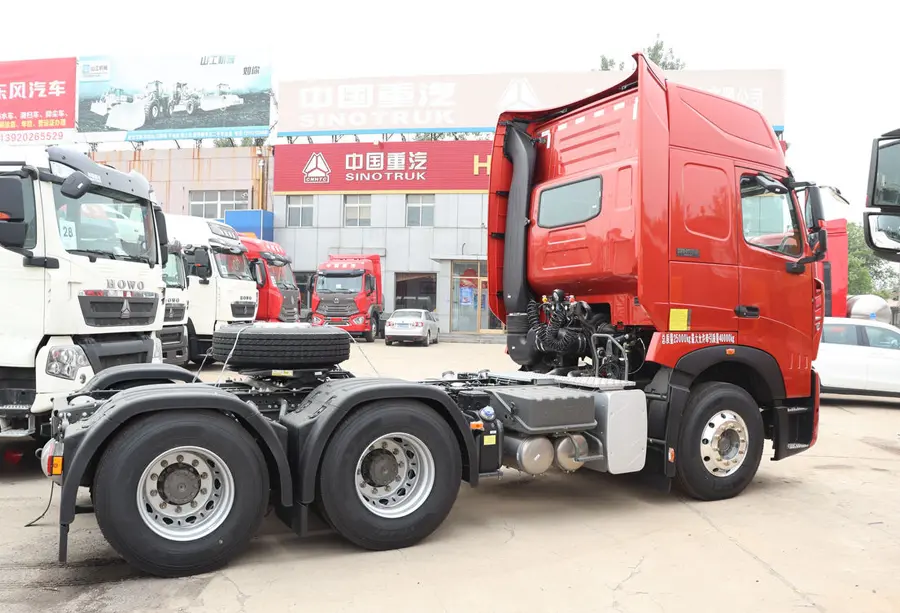

SINOTRUK HOWO T7H TRACTOR HEAD |
||||
|
Truck Model |
ZZ4257V344JB1R |
|||
|
Drive mode |
6×4 |
|||
|
Truck Brand |
SINOTRUK-HOWO |
|||
|
Dimension(Lx W xH)(mm) |
6800x2496x3668 |
|||
|
Approaching angle/Departure angle(°) |
16/70 |
|||
|
Overhang(front/rear) (mm) |
1500/725 |
|||
|
Wheel base (mm) |
3400+1400 |
|||
|
Max speed(km/h) |
90, 102 |
|||
|
Curb weight(kg) |
9210 |
|||
|
Gross Vehicle Weight(kg) |
25000 |
|||
|
Engine
|
Model |
WP12.4000E201 National II standard 400 horsepower,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection |
||
|
Fuel type |
Diesel |
|||
|
Horsepower |
400HP |
|||
|
Emission Standard |
Euro 2 |
|||
|
Fuel tank capacity |
600L |
|||
|
Transmission |
Model |
HW19710, 10forwards & 2reverse |
||
|
Brake system
|
Service brake |
Dual circuit compressed air brake |
||
|
Parking brake |
spring energy, compressed air operating on rear wheels |
|||
|
Auxiliary brake |
engine exhaust valve brake |
|||
|
Steering system |
Model |
8198,hydraulic system with power assistance |
||
|
Front axle |
VGD71 front axle (drum) |
|||
|
Rear axle |
ST16 dual rear axle (drum) |
|||
|
Tyre |
315/80R22.5 (11) (including 1 spare tire) |
|||
|
Clutch |
Ø430 diaphragm spring clutch,hydraulic control air power assisted |
|||
|
Electrical system
|
Battery |
2X12V/165Ah |
||
|
Alternator |
28V-1500kw |
|||
|
Starter |
7.5Kw/24V |
|||
|
Cab |
HW76 cabin, one bed, with air-condition. all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |
|||
