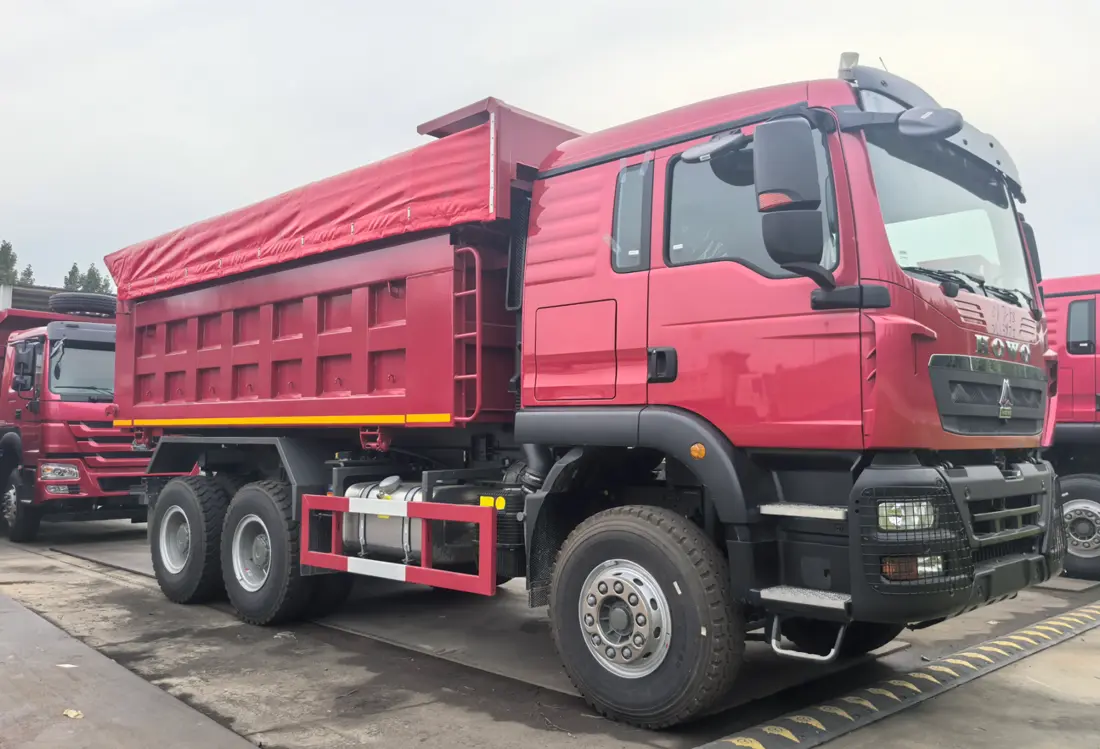

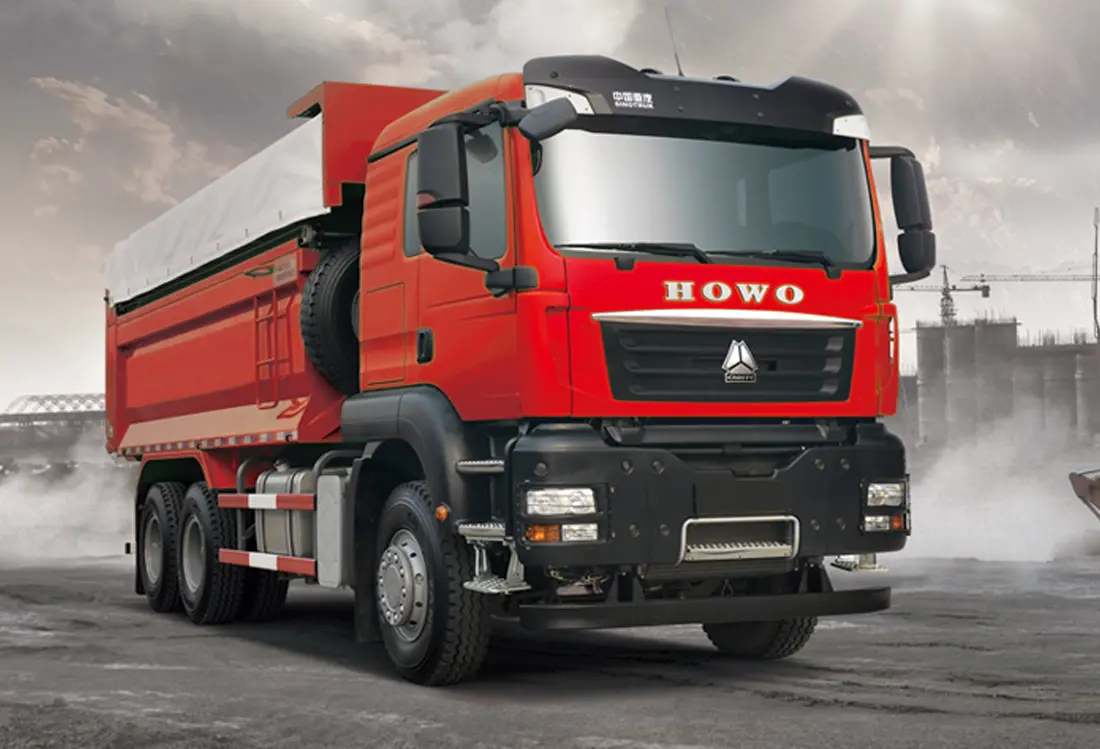

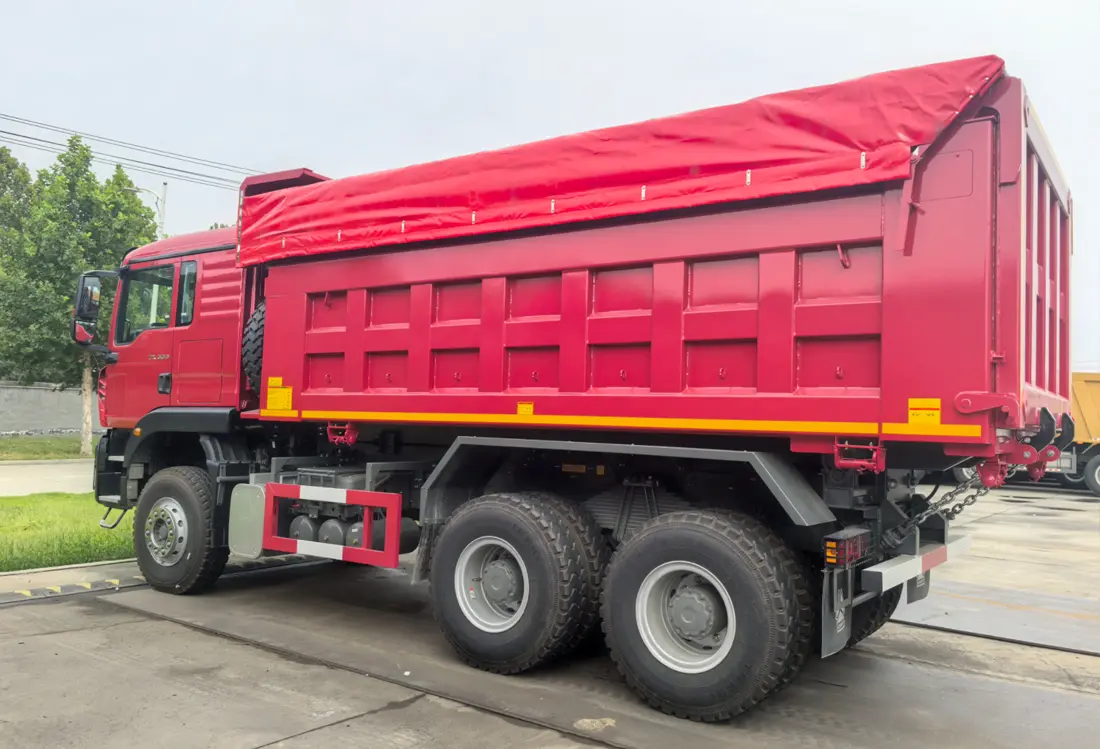

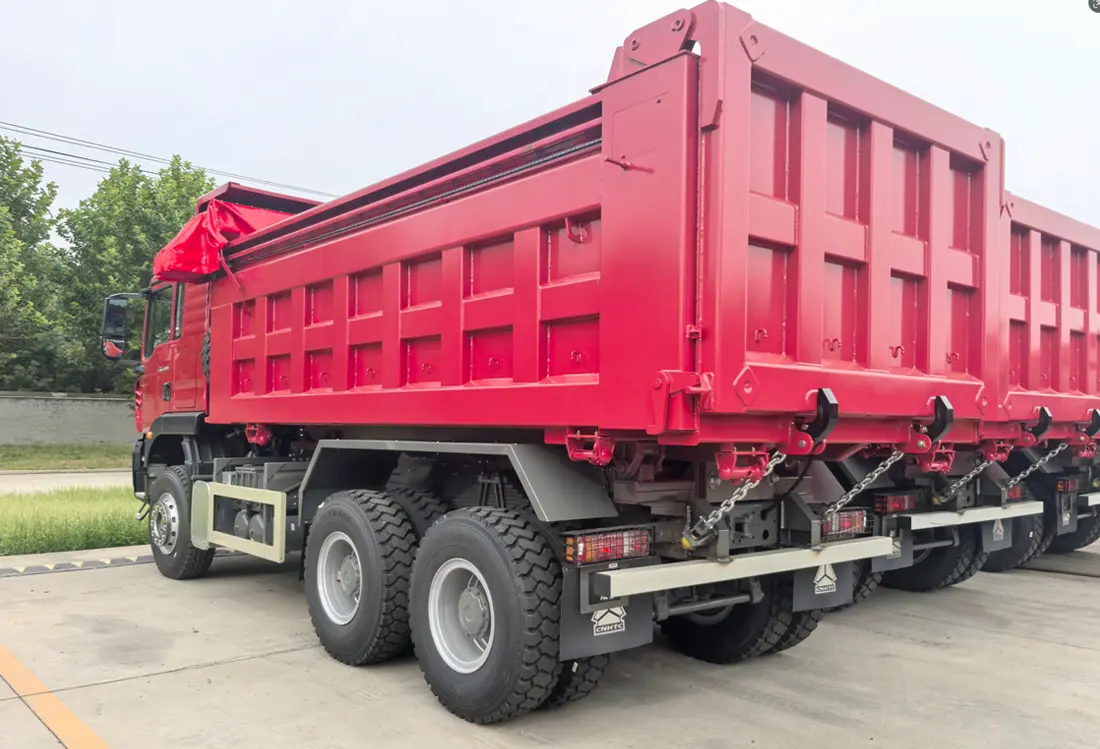

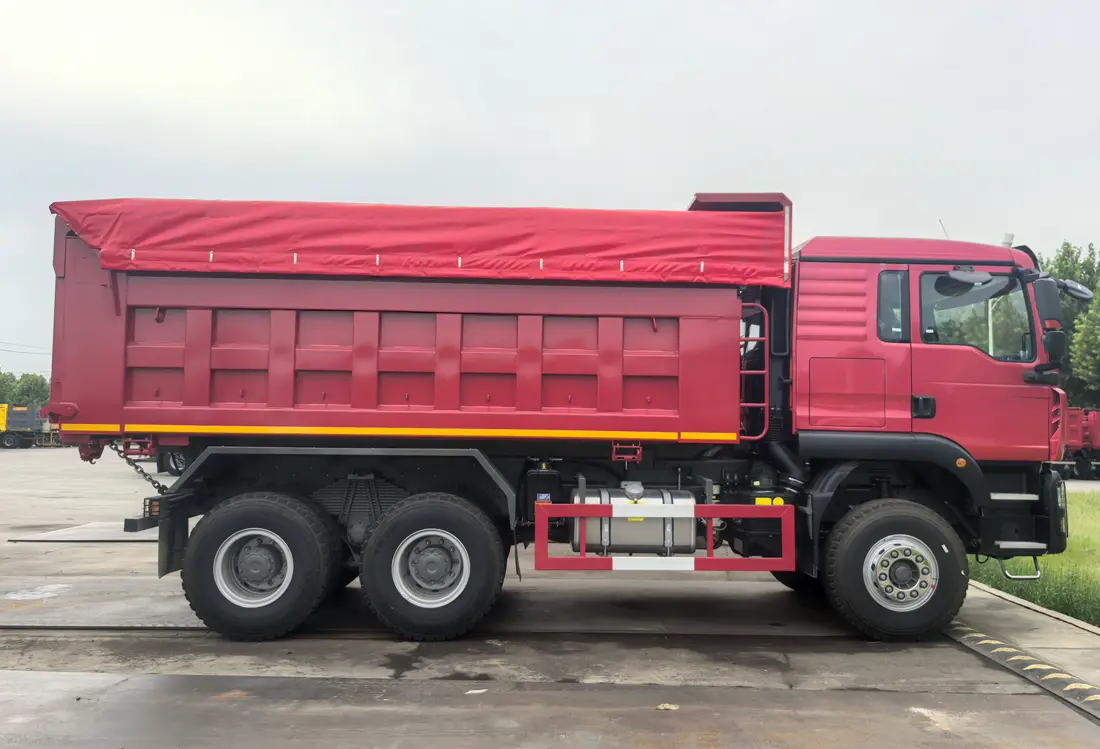

Sinotruk Howo TX 6X4 Dump Truck With Tarp Specifications Configuration Parameter Table
| Brand: HOWO | Strain: TX | Substrain: TX |
| Vehicle category: Medium and heavy trucks |
Vehicle use: Dump truck, Tiper | Drive type: 4×2,6×4,6×6,8×4 |
| Total mass (t):25 | Weight (kg):9700 | Wheelbase (mm):3625 |
| Vehicle length (mm):7275 | Vehicle width (mm):2522 | Vehicle height (mm):3250, 3825 |
| Truck model:ZZ3257N364GB1 | ||
| Engine: WD615.47,WP10.380E22,WP12.400E201 ,WP12.430E201,MC11.43-30,MC11-54-30 |
Engine power (Ps): 340,371,380,400,430,460,540 |
Emission level: Europe Ⅱ,Ⅲ,Ⅳ,Ⅴ |
| Cab: TX-M,TX-F | Transmission: HW19710,HW19712+HW70PTO,HW25712,ZF16S2231-TO | |
| Frame: Double layer frame (8+8/300) | Front Axle: HF7,HF9,VGD71,VGD95 Front Axle (Drum) |
Drive Axle: HC16,ST16,AC16,MCY13BGS,MCP16ZG ,MCX16ZG Dual Rear Axle(Drum) |
| Drive Axle Ratio: 3.7,3.93,4.11,4.42,4.77,5.26,5.451,5.73 |
Steering gear:Bosch steering gear | Brake control system: with ABS |
| Bumper: High bumper (full metal) | Fuel tank/gas cylinder:400L,500L,600L,700L,800L,750L +360L double tanks |
|
| Tires: 12.00R20,13R22.5,315/80R22.5(mixed tread/20PR) | ||
| Howo TX Dump Truck, Big Truck, Big Dump Truck, City Construction Dump Truck Specifications Cab Options TX-M,TX-F Engine Options WD615.47,WP10.380E22,WP12.400E201,WP12.430E201,MC11.43-30,MC11-54-3 Transmission Options HW19710,HW19712 + HW70PTO,HW25712,ZF16S2231-TO Axles Front Axles (Drum): HF7, HF9, VGD71, VGD95 Dual Rear Axles (Drum): HC16, ST16, AC16, MCY13BGS, MCP16ZG, MCX16ZG Frame and Suspension Frame: Double layer (8+ 8/300) Suspension: Reinforced multi-leaf springs (front 11/rear 12) Steering and Exhaust Steering: Bosch steering gear Exhaust System: Standard with ABS Design and Bumper Bumper: High bumper (metal) Design: Classic Axle Ratios: 3.7,3.93,4.11,4.42,4.77,5.26,5.451,5.73 Intake System,Right oil bath filter,Wheels and Tires,Wheels: Reinforced Tire Options: 12.00R20, 13R22.5, 315/80R22.5 (mixed tread/20PR) Fuel Tank Options: 400L,500L,600L,700L,800L,750L + 360L dual tanks Battery165AH Optional Features Rear tow hitch Reverse buzzer Air conditioning (hot/cold) Dashboard languages: English, French, Arabic, Spanish, Russian Fire extinguisher, Front and rear headlamp protectors, Metal bumper protective grille |
||
