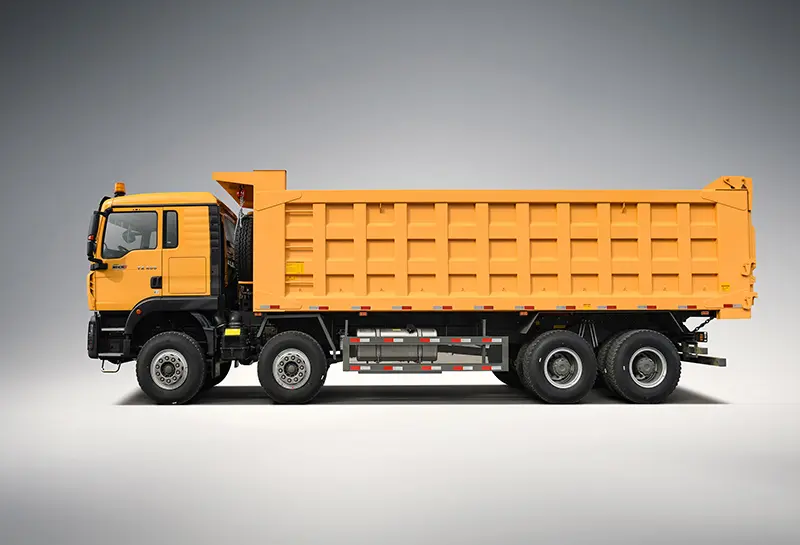

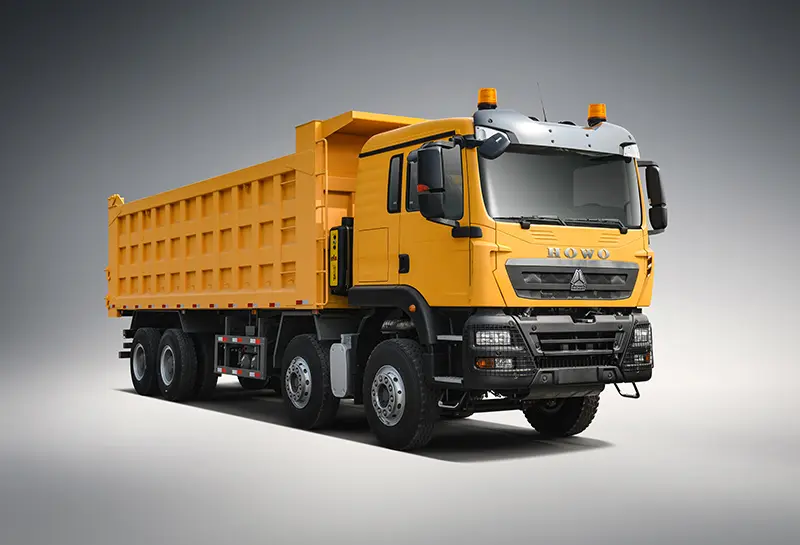

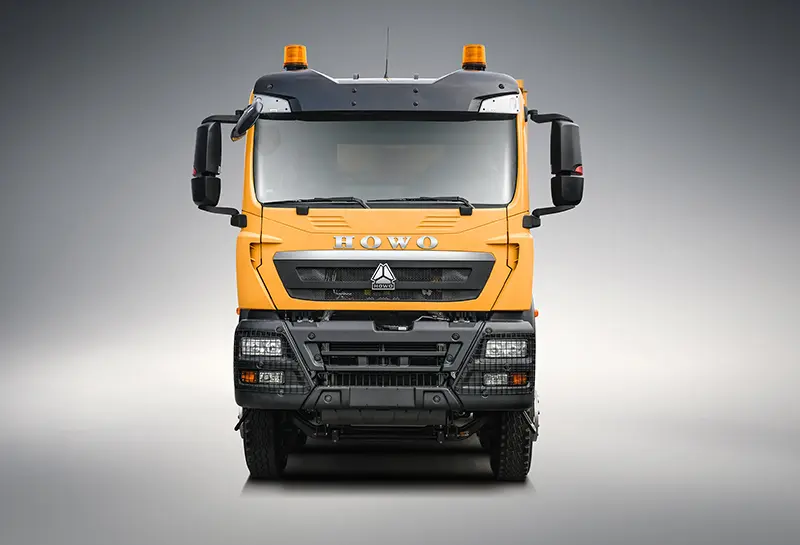

SINOTRUK HOWO TX 8X4 DUMP TRUCK
|
|
Driving Type
|
LHD (RHD is optional)
|
Engine
|
Make: SINOTRUK
Diesel 4-stroke direct injection diesel engine Engine model: WD615.47, Euro 2, 371 HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L |
Transmission
|
HW19710, 10F & 2R, with PTO
|
Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
|
|
Steering
|
ZF power steering, modol ZF8118, hydraulic steering with power assitance
|
Front Axle
|
HF9,1×9000 KGS
Steering with doubleT-cross section beam |
Rear Axle
|
HC16, 2×16000 KGS
Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles. Ratio:5.73 |
Propeller Shaft
|
Double universal joint propeller shaft with gear-shaped coupling flange
|
Chassis
|
Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
|
Tyres
|
12.00R20, radial tyres with one spare tyre
|
Fuel Tank
|
300L
|
Cargo Body
|
7800*2300*1500 mm, 27 CBM, Floor 10mm Side 8mm
|
Overall Dimension
|
10800*2550*3250mm
|
