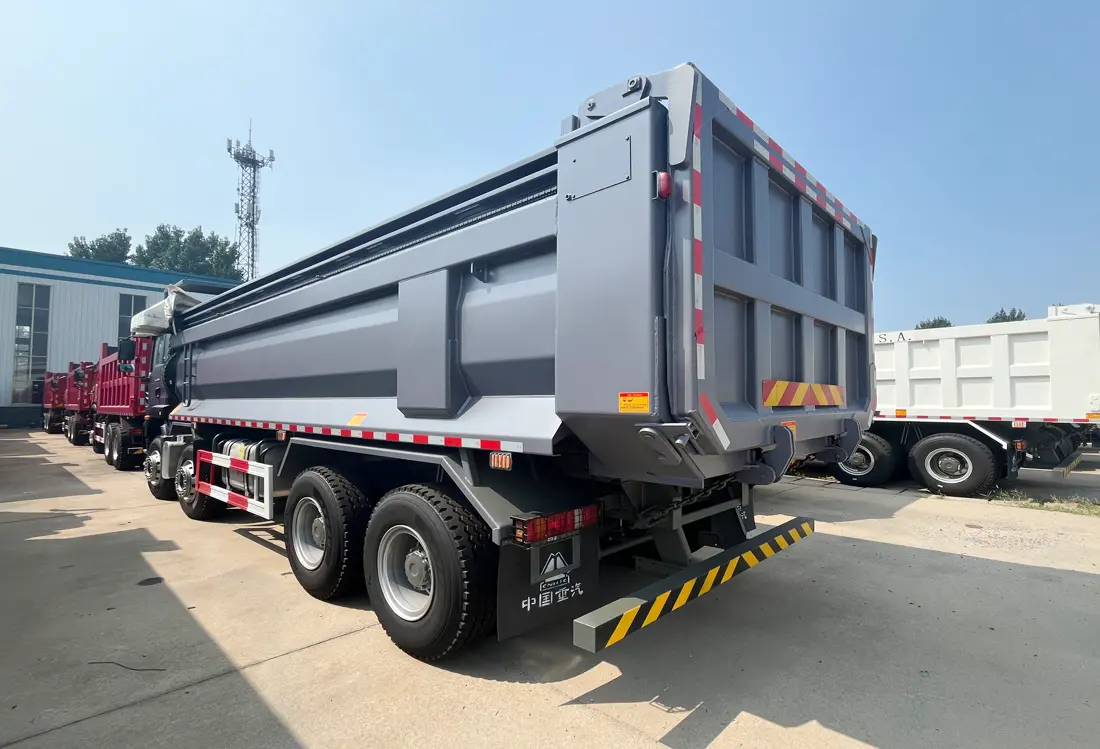

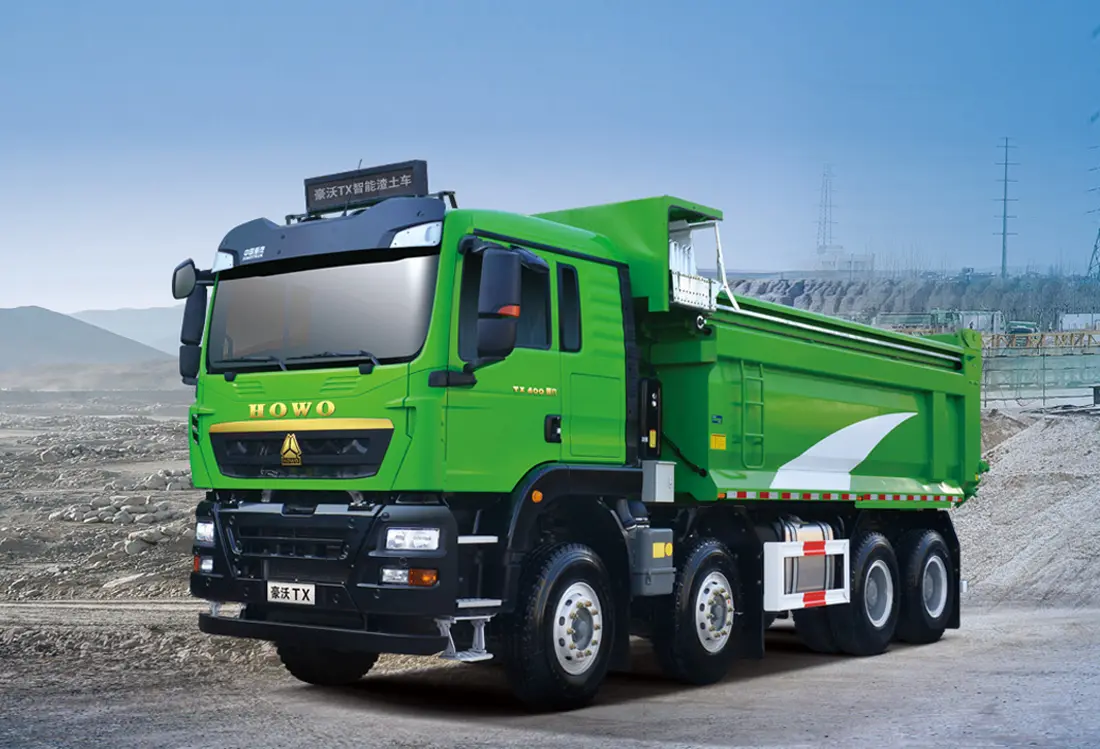

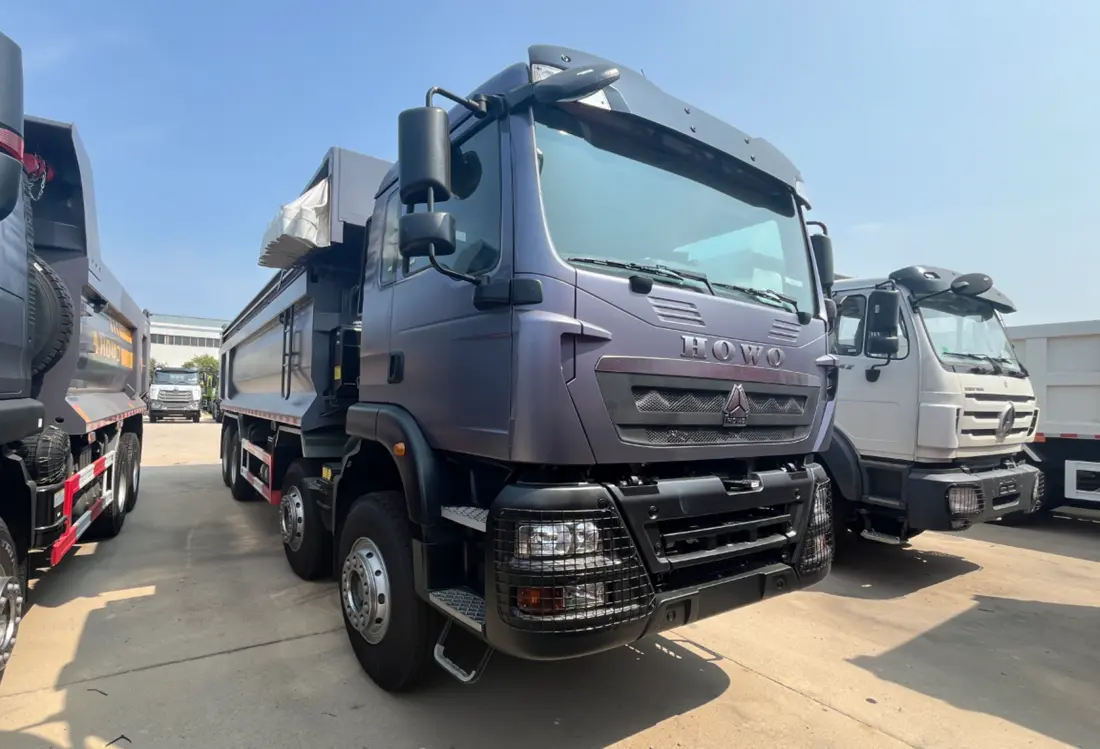

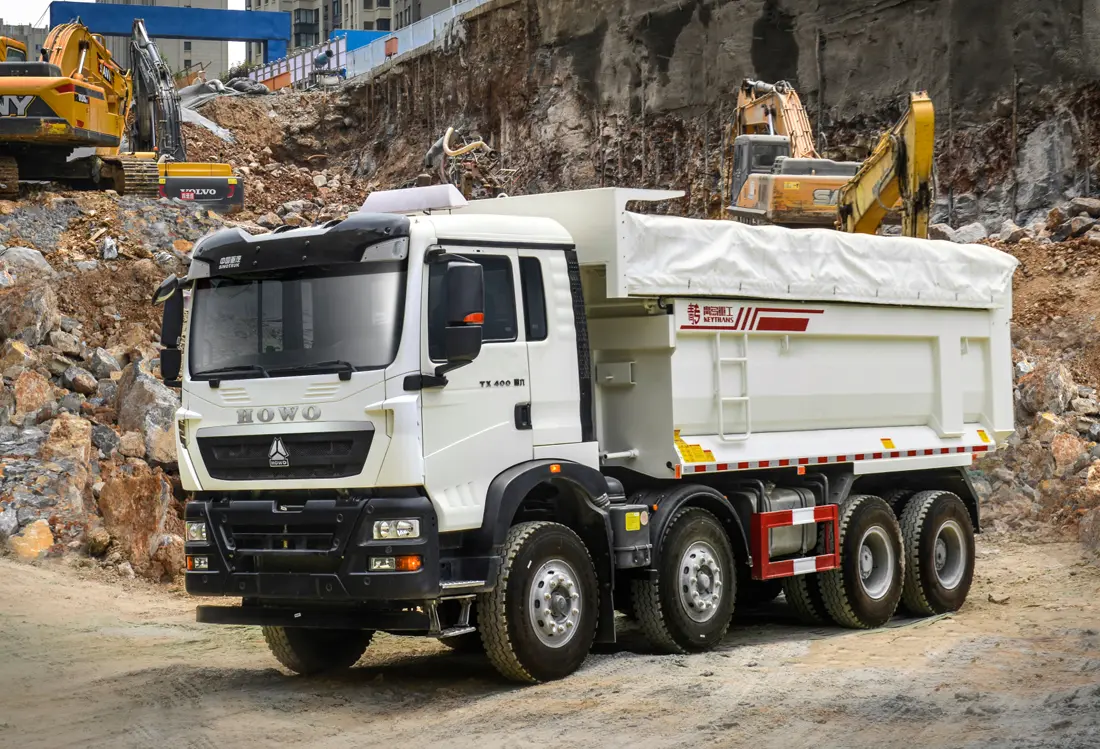

The Sinotruk HOWO TX 8X4 Dump Truck with Tarp is a heavy-duty workhorse designed for efficient and secure transportation of bulk materials, featuring a rugged 8X4 chassis and a retractable tarp system for enhanced coverage and environmental protection.
| Howo TX 8X4 Dump Truck | ||
| Vehicle Model | ZZ3317V286GF1B | |
| Engines | Model | WP8.350E62 |
| Net power (kw) /speed (r/min) | 257/2100 | |
| Maximum torque (Nm) /speed (r/min) | 1400/1200-1600 | |
| Transmission | HW19712L transmission + HW50 direct coupled extractor |
| Clutches（mm） | |
| Rear axle model | MCX16ZG Self-aligning arm double rear axle (drum) |
| Rear axle speed ratio | 4.8 |
| Oil tank（L） | 400 |
| Frame section（mm） | 8+4/280 |
| Suspension (front and rear springs) | Front and Rear Standard Multi-Leaf Springs (7/7/10) |
| Tires | 11.00R20 (Mixed Patterns) |
