Sinotruk Howo TX 8x4 Mixer Truck

Sinotruk Howo TX 8x4 Mixer Truck

Vehicle type
Special Vehicles
Model
ZZ5317GJBN306GF1
Dimension
9830×2496×3850mm
Maximum Speed
82km/h
Mixing dynamic volume
7.99m³
Engine
Sinotruck MC07H.35-60
Product Introduction
Product Introduction

Efficient and Reliable Engineering Partner:SINOTRUK HOWO TX 8X4 MIXER TRUCK
As a star product of China National Heavy Duty Truck (CNHTC), Sinotruk Howo TX 8×4 Mixer Truck has become a benchmark model in the field of concrete transportation due to its excellent performance and stability. The truck adopts 8×4 drive mode and is equipped with a high-power National VI emission engine with strong power and excellent fuel economy, which can easily cope with complex road conditions and high-intensity operation.

The Sinotruk Howo TX 8×4 Mixer Truck’s mixing drum is scientifically designed with wear-resistant steel and double-screw blade technology to ensure even mixing of concrete and maximize discharge efficiency. The chassis structure is reinforced to provide a high load capacity of 12-14 cubic meters, which is accurately controlled by the hydraulic system to significantly improve the progress and quality of construction.

Whether for large-scale infrastructure projects or urban construction, the Sinotruk Howo TX 8×4 Mixer Truck continues to contribute to the efficient development of the construction machinery field with its high reliability, low operating costs and wide adaptability.

SINOTRUK TX 8X4 MIXER TRUCK

In terms of maneuverability, the Sinotruk Howo TX 8×4 Mixer Truck is equipped with an intelligent driver assistance system and a wide-view cab, ensuring safe and comfortable operation. In addition, the vehicle is easy to maintain, the modularized design of key components prolongs its service life, and the after-sales service network covers the whole country, providing round-the-clock protection for the construction team.

sinotruk concrete mixer truck-5
Product Parameters
SINOTRUK HOWO TX 8X4 MIXER TRUCK
Product Name Sinotruck TRUCK Brand Sinotruck
Origin China Model Sinotruk TX mixer truck for sale south africa
Year 2022 Type LORRY
Total Weight 31000(kg) Curb Weight 13850(kg)
Seats 2 Max speed 82(km/h)
Type of Fuel Diesel Length 10180mm
Weight 2550mm Height 3990mm
Overall Dimensions(L*W*H) 10180*2550*3990mm Howo Concrete Mixer Truck Howo Concrete Mixer Truck
ENGINE PARAMETER
Engine Model
WP8.350E61
Engine Power 257/349kw
Displacement 7800(ml) Emission Standard EURO 6
CHASSIS PARAMETERS
Tire Type 12R22.5 18PR,11.00R20 18PR,12.00R20 18PR,295/80R22.5 18PR,315/80R22.5 18PR,12.00R20 18PR,11R22.5 18PR Approach/Depature Angle 19/18(°)
F/R Overhang 1430/2550(mm) Front Track 2061/2061(mm)
Rear Track 1870/1870(mm) Number of Axis 3
Axial load 6500/7000/17500 Wheelbase 1800+3800+1350(mm)
Product Applications
sinotruk concrete mixer truck-7
Sinotruk Howo TX 8x4 Mixer Truck

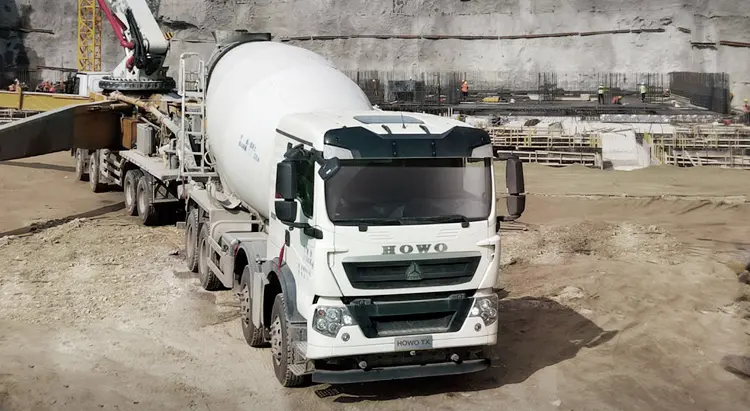

sinotruk concrete mixer truck-6
Sinotruk Howo TX 8x4 Mixer Truck

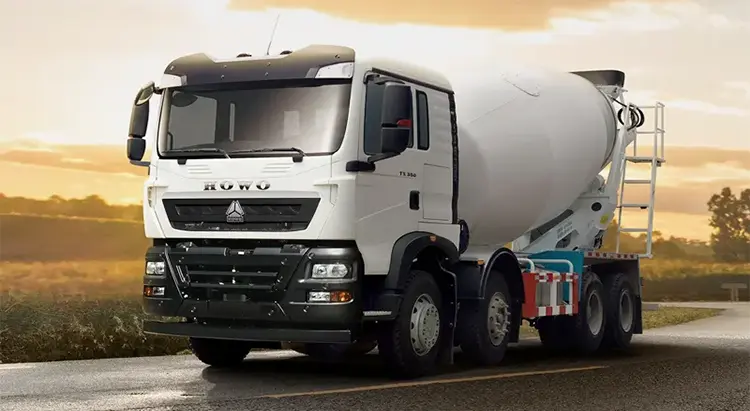

Sinotruk Howo TX 8×4 Mixer Truck-22
Sinotruk Howo TX 8x4 Mixer Truck

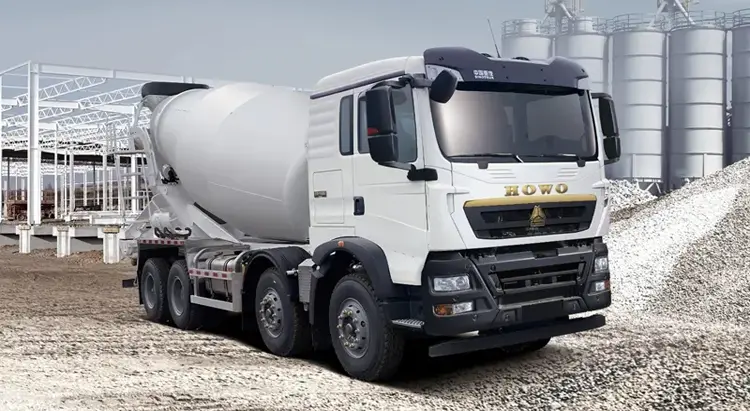

Sinotruk Howo TX 8×4 Mixer Truck-23
Sinotruk Howo TX 8x4 Mixer Truck
